Options Dispense and Fill Heads

Electrically conductive Dispense and Fill Heads

Dispense and Fill Heads made from elec. conductive plastics, allow a safe handling of flammable chemicals in potentially explosive environments.

Configure it now!

  • Manufactured entirely from plastic, no metal parts
  • Safe in hazardous areas
  • The conductive version is electrostatically safe in accordance with Cenelec Technical Report TR 50404:2003.

Available in product lines

QC2
G-Series
M2-Series

Flow Rate (max)

< 2 l/min
Product line
M2-Series

25-50 l/min
Product line QC2

100 l/min
Product line G-Series

Valves

Check Valve
self-closing made from fluoropolymer

Turncock (QC2)
manual

Available materials

Electrically conductive
PP
PVDF
PFA
Stainless Steel

Gaskets

Standard
FFKM (Kalrez®)

Alternative
FKM (Viton®)
EPDM

Grounding

Prior to commissioning the Dispense / Fill Heads and Dip Tubes have to be grounded appropriately.

Dispense- / Fill Heads:
Grounding with incorporated grounding wire.

Dip Tubes:
Grounding with optional grounding wire, contact ring or grounding clamp.

Related Dip Tubes

Electrically conductive version CD

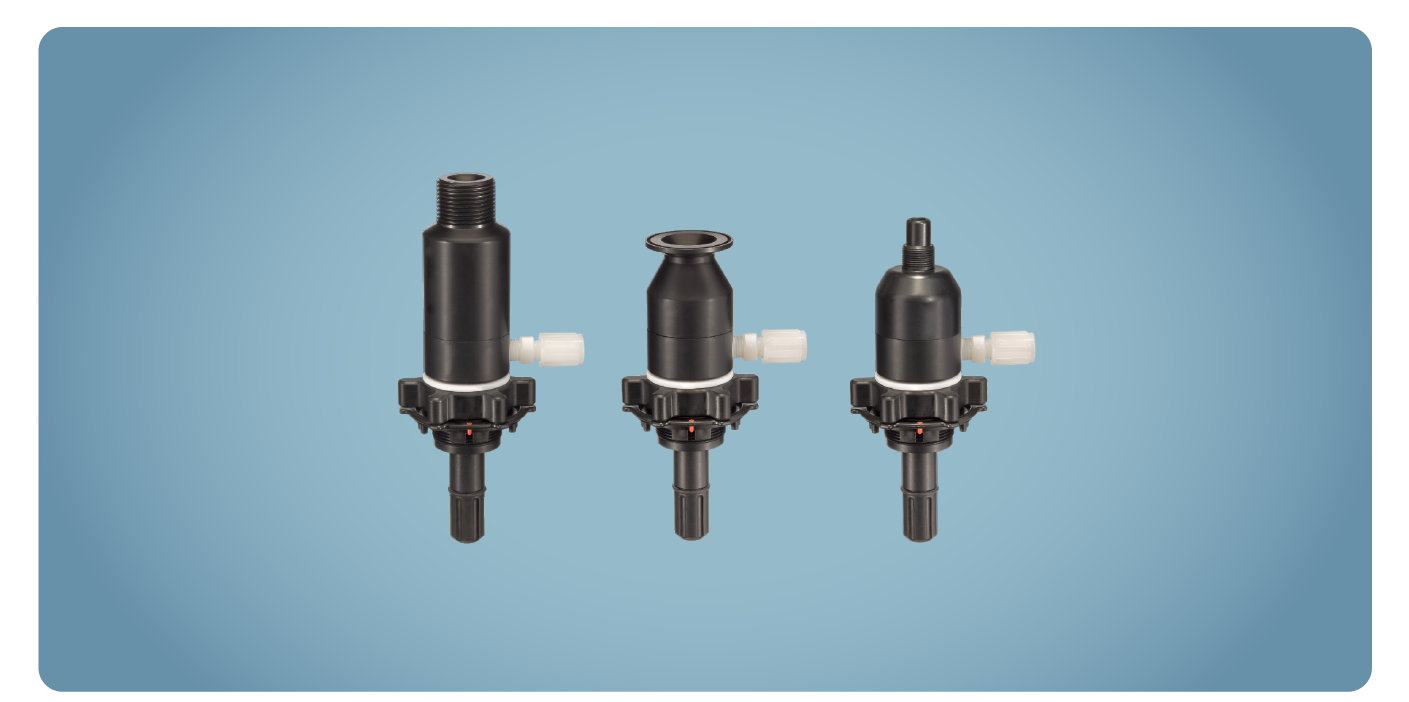

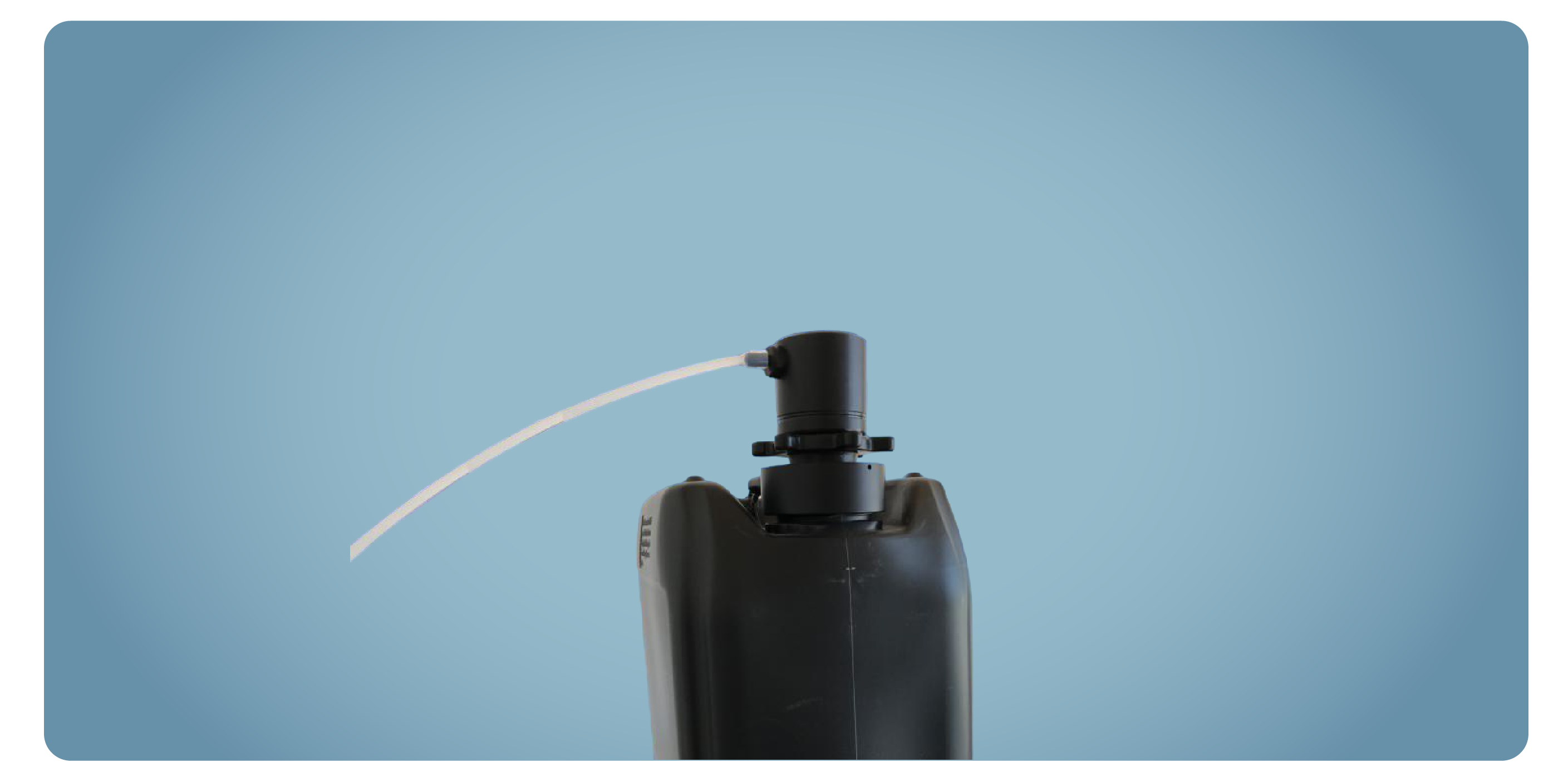

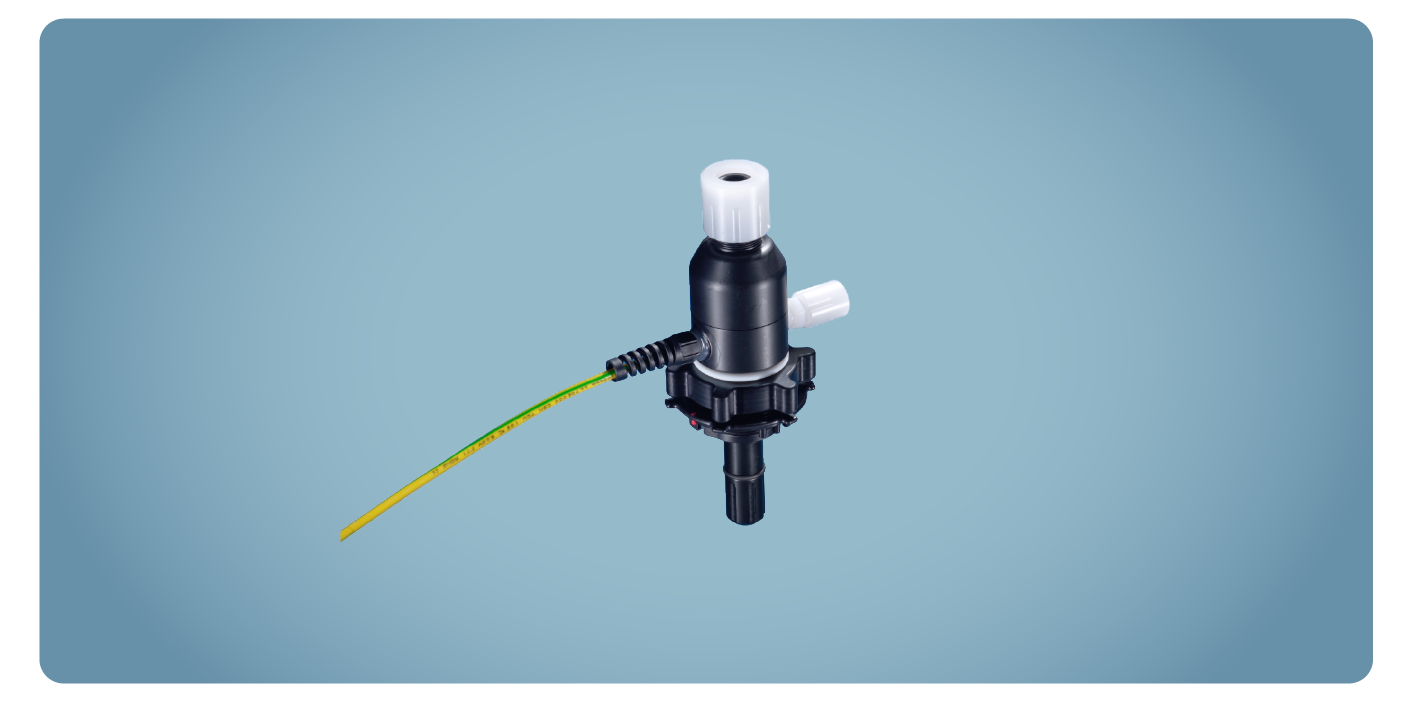

QC2 Dispense Head, electrically conductive QC2 Dispense Head, electrically conductive electrically conductive M2-Series Dispense Head connected to canister electrically conductive M2-Series Dispense Head connected to canister different fluid connections different fluid connections QC2 Dispense Head, electrically conductive
Technical Information

Please visit our download center for further downloads and other languages. Resources > Downloads.

In this section we would like to show you videos about our products.

To make this possible, we ask you to agree to "targeting", which allows us to show you YouTube videos directly on our site.

Options

Fill and Dispense Heads with Limit Switch

Fill and Dispense Heads with Limit Switch

Dispense and Fill Heads with built-in limit switch to signal the correct coupling with the dip tube.

learn more →
Fill Heads with integrated N2-blanketing port

Fill Heads with integrated N2-blanketing port

Fill Heads with additional second vent port allow nitrogen blanketing and filling of the container afterwards in a closed loop.

learn more →
Different manual turncocks

Manual turncocks

Manual turncocks in the Dispense and Fill Heads enable a variety of applications:

  • Higher flow rates
  • No flow losses due to check valve
  • Can be used in both flow directions
  • Particularly suitable for:
learn more →
check resistance

This might also interest you

Ready-to-use complete system

Ready-to-use complete systems

The stationary and ready-to-use dispensing station allows maximum safety and flexibility.
Designed for safe and efficient dispensing of chemicals - the perfect addition for the QC-System.

learn more →
Docking station

Docking stations

Safe and reliable storage unit for Dispense and Fill Heads whilst changing containers.

learn more →
Universal drum wrench

Universal drum wrench

Universal drum wrench for safely opening, closing and fitting dip tubes and screw plugs.

learn more →
Level measurement

Level measurement and overfill protection

Simple and clean level measurement and overfill protection on drum and IBC. Choose between the following options: Level Measurement: Capacitive and simple level measurement from ou
learn more →
Convoluted PFA tubing

Convoluted PFA tubing

  • Flexible handling
  • Ideal for vertical installation of the suction line
  • Also suitable for applications with dosing pumps
  • Version with antistatic outer surface
learn more →
Corrugated PFA Tubing with Antistatic Outer Layer

Corrugated PFA Tubing with Antistatic Outer Layer

  • Conductive Flare connections on both tube ends
  • 10cm-long straight hose ends on both sides so that the QC Dispense Head can easily be connected with the flare connecting system
  • More stable compared to usual corrugated PFA tubing due to inwards corrugation
learn more →



QC2 Dispense Head, electrically conductive QC2 Dispense Head, electrically conductive electrically conductive M2-Series Dispense Head connected to canister electrically conductive M2-Series Dispense Head connected to canister different fluid connections different fluid connections QC2 Dispense Head, electrically conductive
