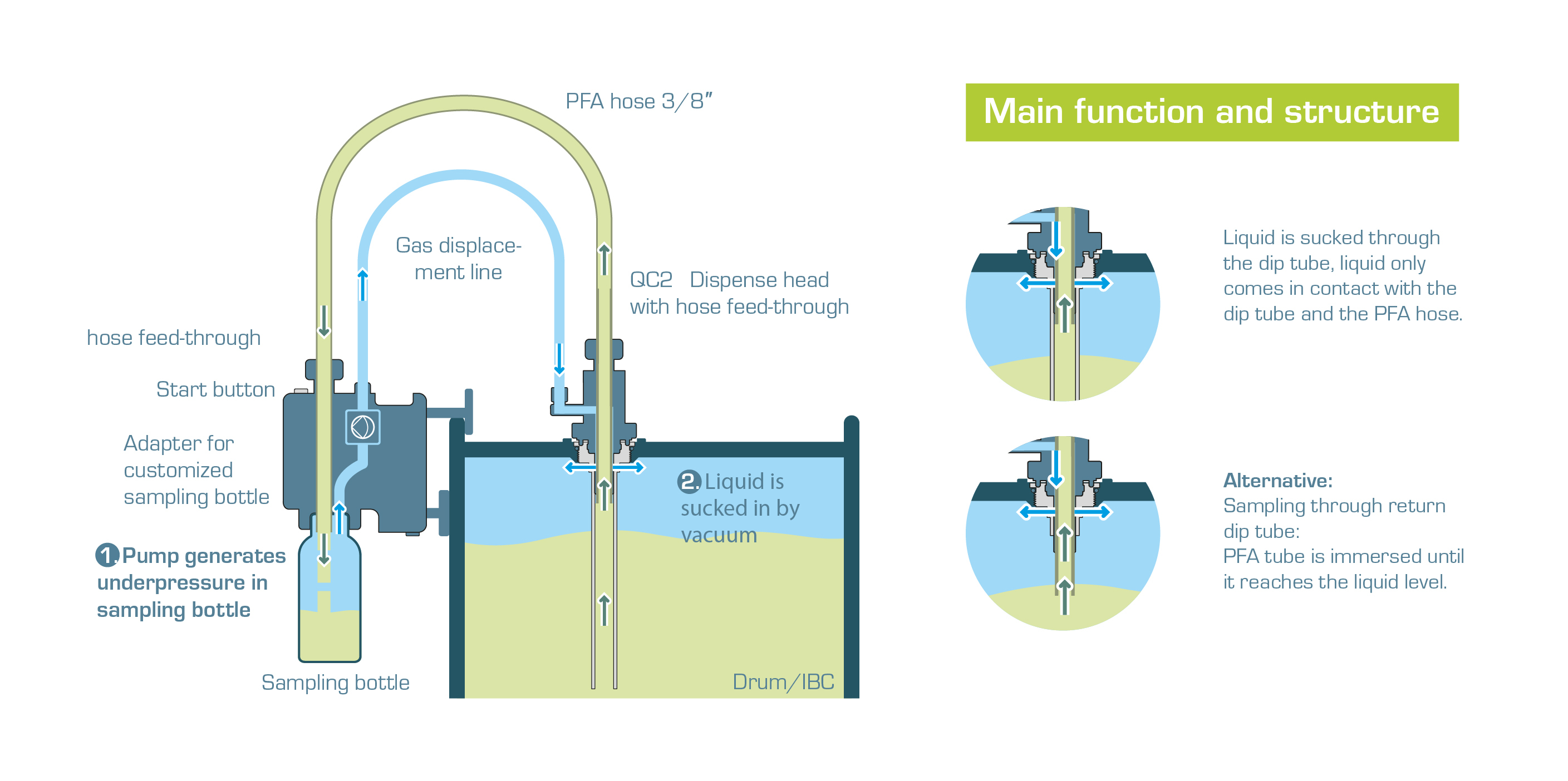

With the QC-S sampling unit, the sample liquid only comes into contact with the suction hose and the sample bottle (accessories).
Ultra-clean sampling fast, simple and safe

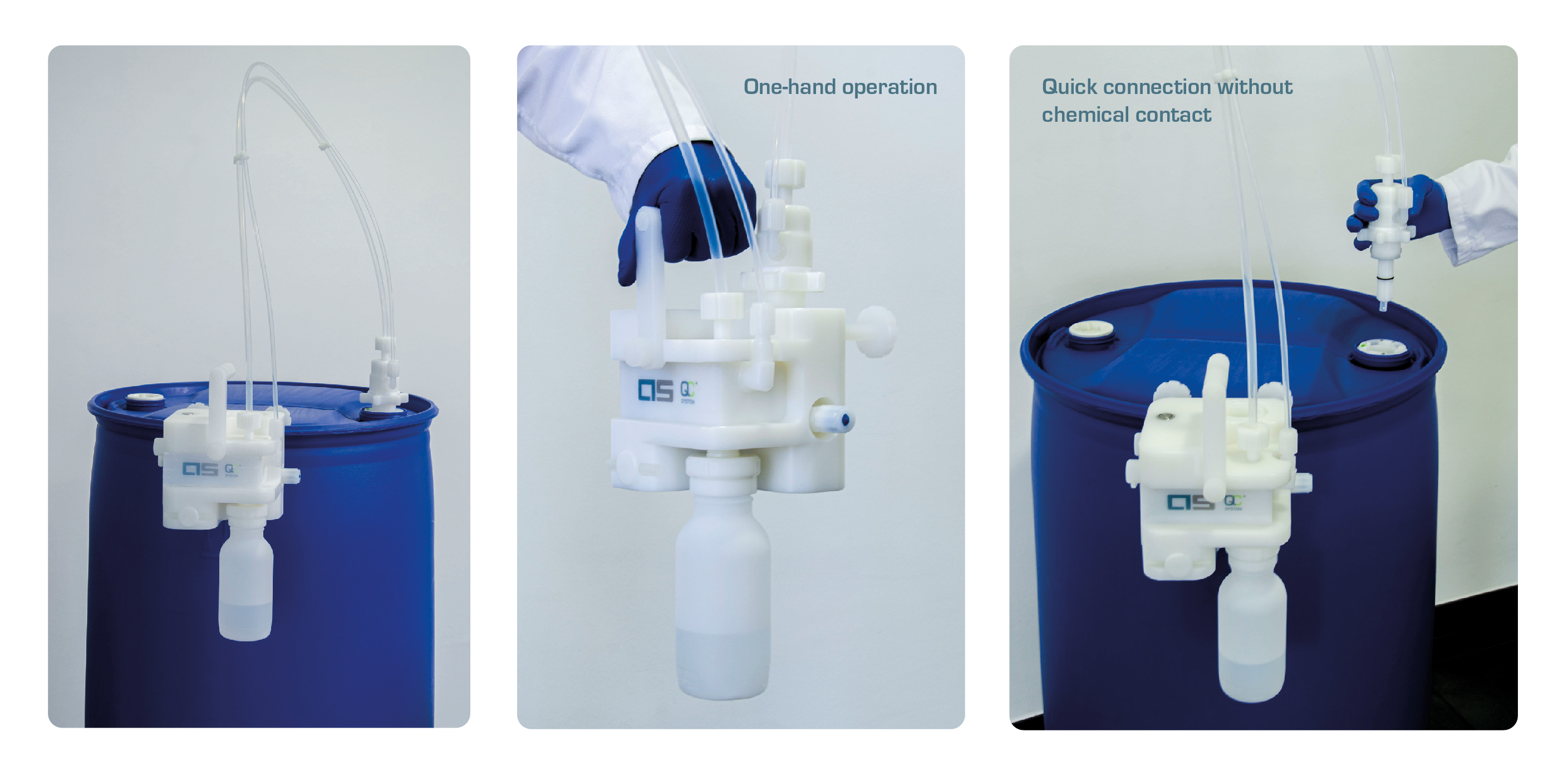

The sampling cube enables safe and contamination-free sampling of corrosive and neutral liquids-without any contact with the operator or the environment.
Simply hook it up to the container, connect it, press the button and off you go!
Features:
- Fully automatic dispensing at the push of a button.
- Closed loop without outgassing and contamination.
- Media contact only with qualified PFA tubing and sampling bottle.
- For drum, IBC, canister and tank.
| Materials with media contact | Materials with gas contact |
|
|
- Easy change and recharge of the 9V battery

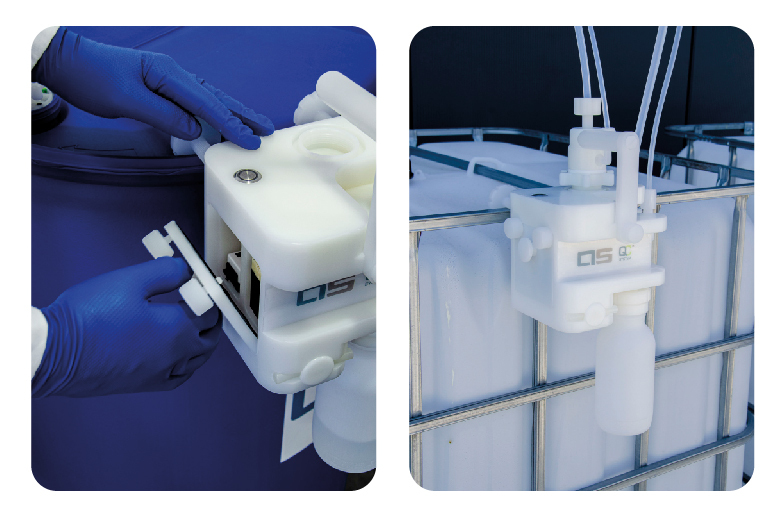

- Can be hooked onto IBC and drum

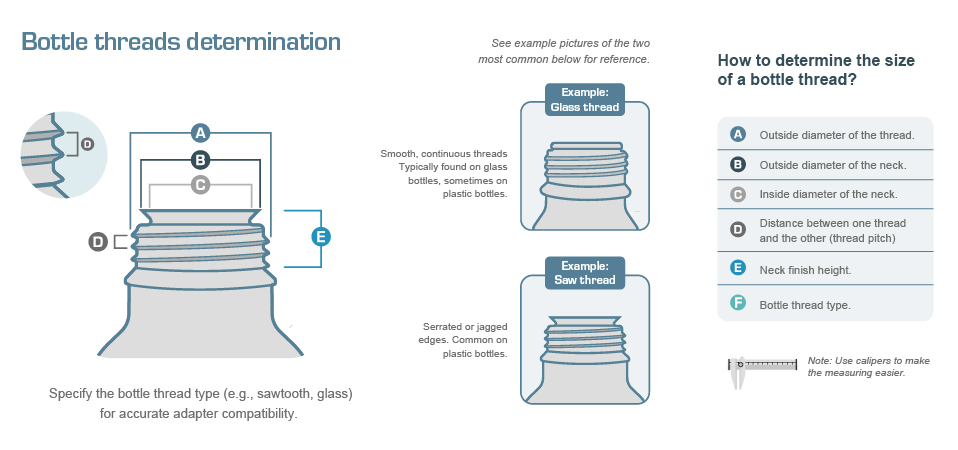

*We can manufacture customised bottle adapters to fit your bottle:
| Thread type | Diameter | Thread lead |
| S36x6 | 36 mm | 6 mm |
| S42x4 | 42 mm | 4 mm |
| S45x4 | 45 mm | 4 mm |
| S52x4 | 52 mm | 4 mm |
| Rd25x4 | 25 mm | 4 mm |
| Rd32x4 | 32 mm | 4 mm |
