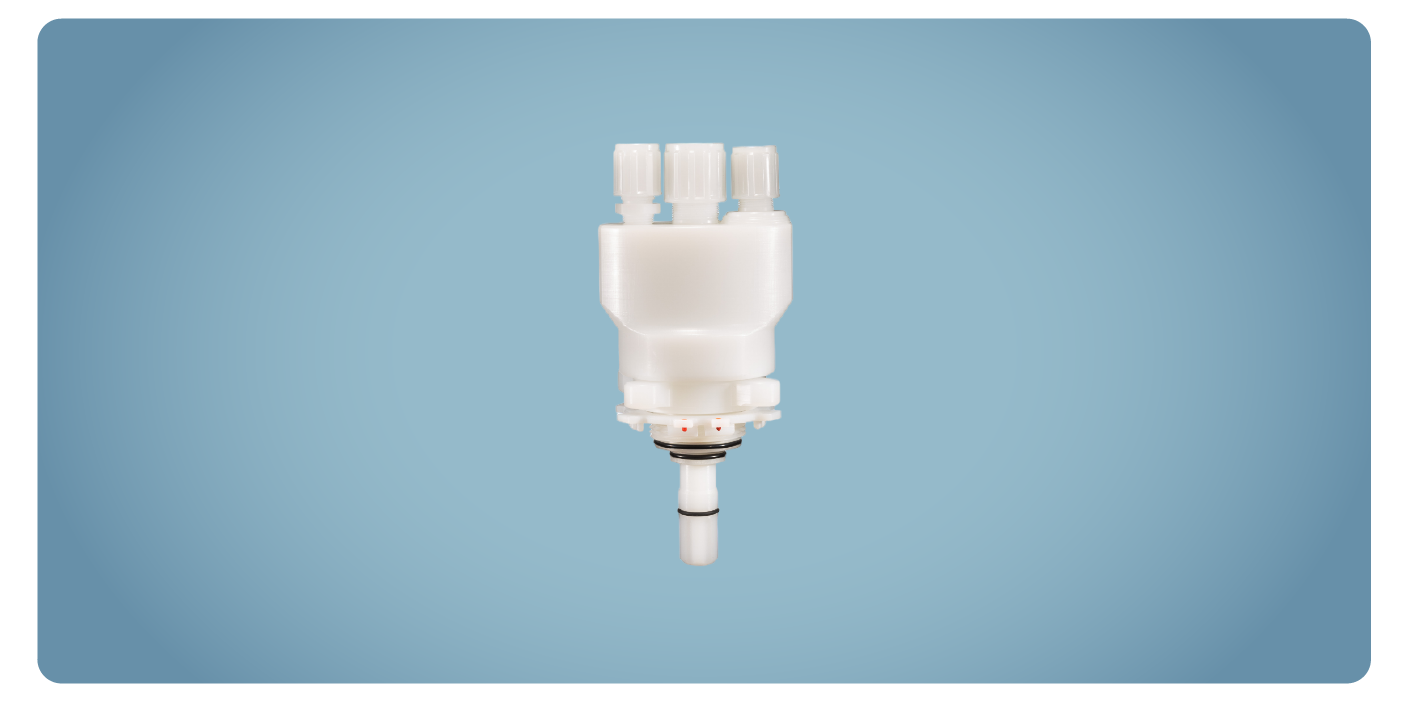

QC3

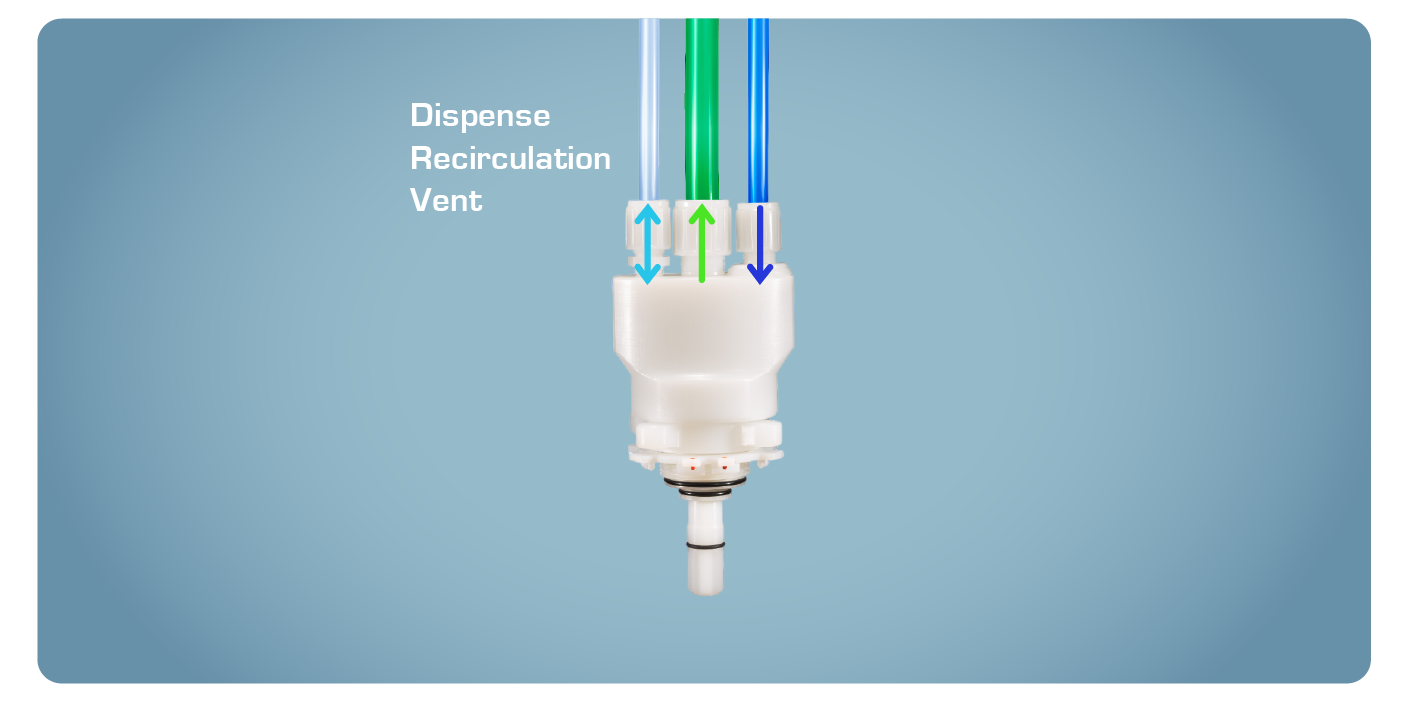

The QC3 product line enables the container to be dispensed, recirculated and ventilated at the same time with a single head.
Flow rates of up to 25-50 l/min

Configure it now!

Flow rate (max)	25 l/min with check valve 50 l/min with turncock	Valves	Check valves self-closing made from fluoropolymer Turncocks manual made from fluoropolymer
Available Materials	High-purity HDPE	Seals	Standard FFKM (Kalrez®) Alternative FKM (Viton®) EPDM
Liquid-Connection	Dispense Flare 3/4" Recirculation Flare 1/2"	Vent-Connection	Flare 1/4", 3/8", 1/2"
Corresponding dip tubes	"DT3"

Datasheet QC3 Turncock
Datasheet QC3
Technical Information

In this section we would like to show you videos about our products.

To make this possible, we ask you to agree to "targeting", which allows us to show you YouTube videos directly on our site.

Options

Manual turncocks

Manual turncocks in the Dispense and Fill Heads enable a variety of applications:

Higher flow rates
No flow losses due to check valve
Can be used in both flow directions
Particularly suitable for:

learn more →

check resistance

This might also interest you

QC2 Dispense and Fill Heads

Dispense and Fill Heads from the QC2 product line are the all-rounders and feature a wide variety of adaptation possibilities and options. Flow rates of up to 25-50 l/min.

learn more →

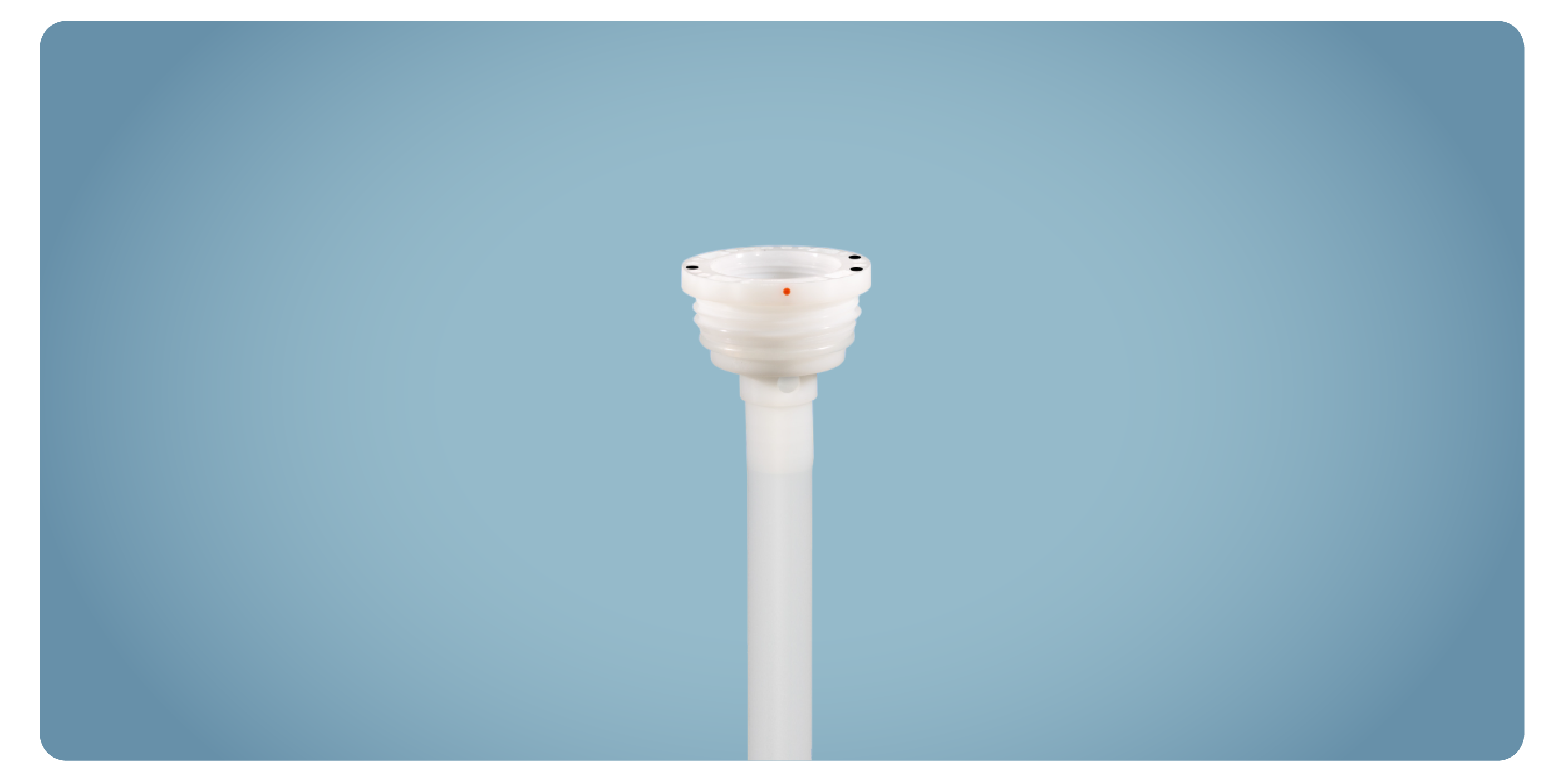

QC3 Dip Tubes
