Options Dip Tubes

Electrically conductive Dip tubes

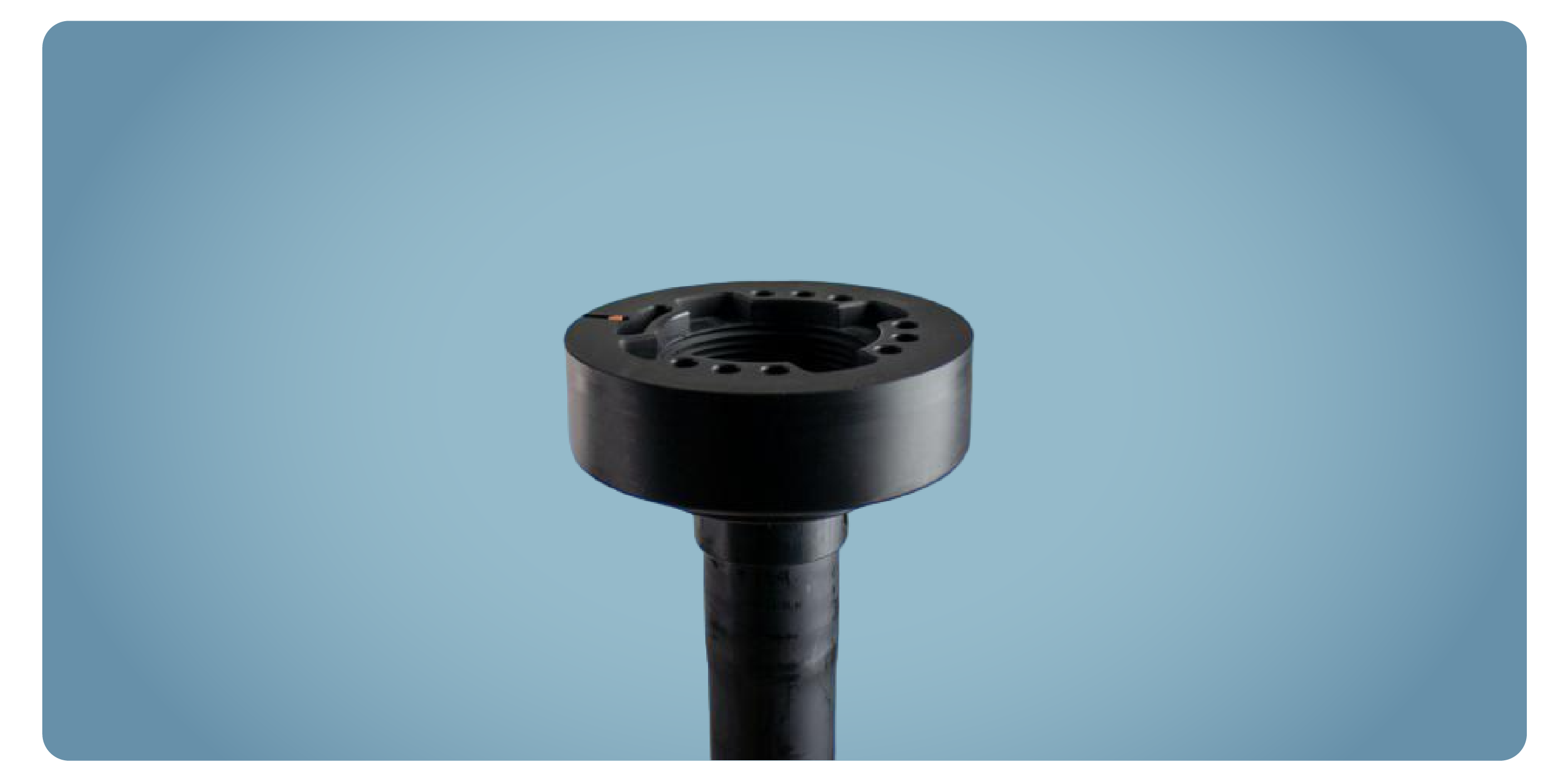

Dip tubes made of electrically conductive plastic, for dispensing flammable liquids and for use in explosive atmospheres.
Only to be used in conjunction with electrically conductive Dispense and Fill Heads.

The conductive version is electrostatically safe according to the Cenelec Technical Report TR 50404:2003.

Available in product lines

QC2
G-Series
M2-Series

Available Materials

Elec. conductive / dissipative
PP
PVDF
PFA
Stainless steel V4A

Grounding

Dip Tubes and Dispense / Fill Heads have to be grounded appropriately prior to use.

Dispense / Fill Heads:

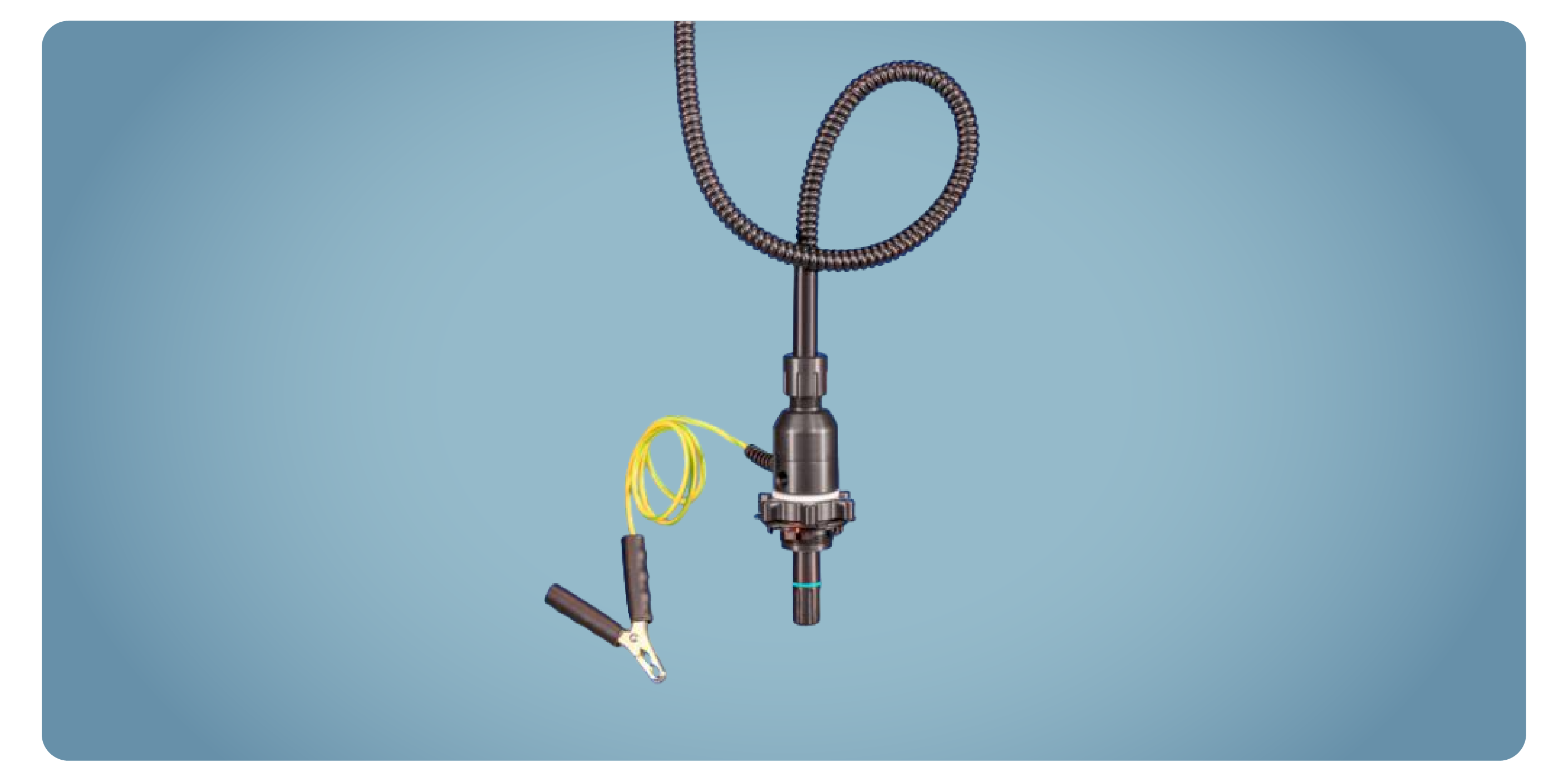

Grounding via incorporated grounding wire

Dip Tubes:

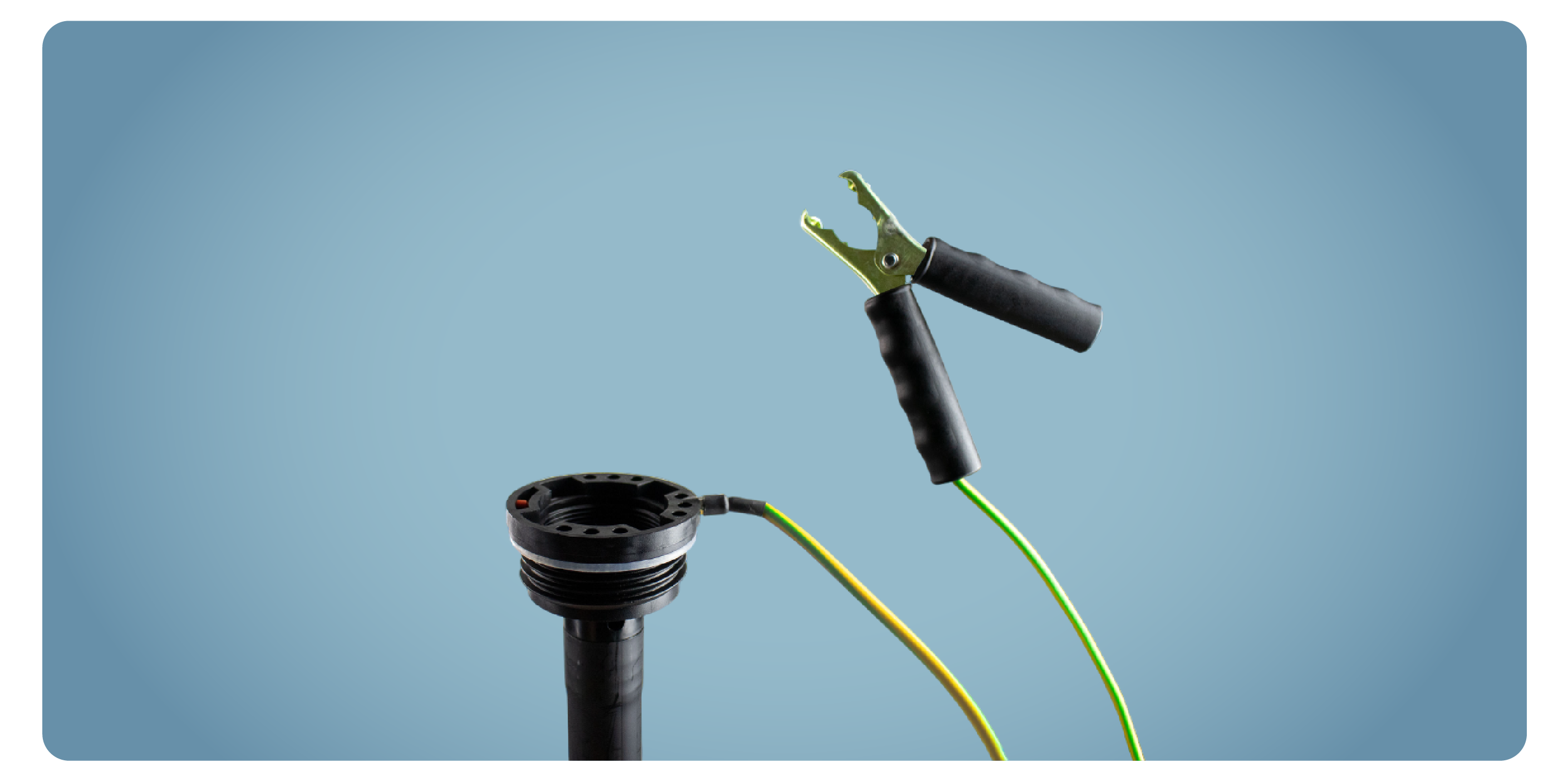

Grounding via optional grounding wire, contact ring or clamp.
Dip tubes made of electrically conductive plastic Dip tubes made of electrically conductive plastic Dip tube S62 with seperate contact ring which makes contact with the container outside wall Dip tube S62 with seperate contact ring which makes contact with the container outside wall Dip tube with integrated contact ring which makes contact with the container outside wall Dip tube with integrated contact ring which makes contact with the container outside wall

Options

bellows at the end of the dip tube

Bellows

The flexible bellows at the end of the dip tube can sit on the bottom of the container and thus enables the container to be completely emptied.

learn more →
A film made of PP inserted in the dip tube

Emission protection film

A film made of PP inserted in the dip tube acts as an emission protection when connecting the Dispense Head.

learn more →
Dip tube with coding pins

Coding pins

Our QC dip tubes can also be purchased uncoded and coded to the appropriate chemical as needed.

learn more →

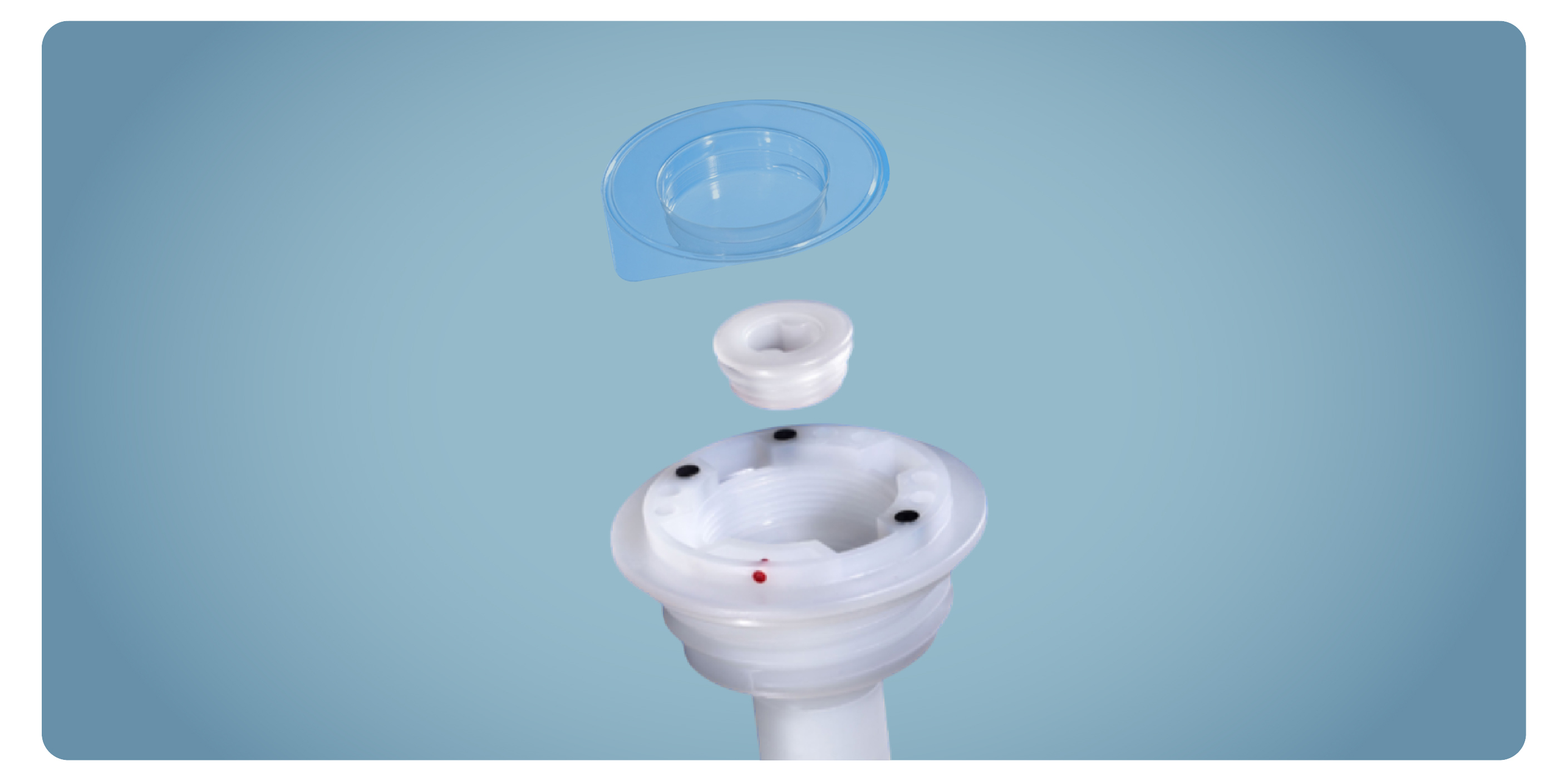

Type "S" closure

Type “S” - closed

The most widespread dip tube closure in the form of a 3/4” or 1” stopper.

learn more →

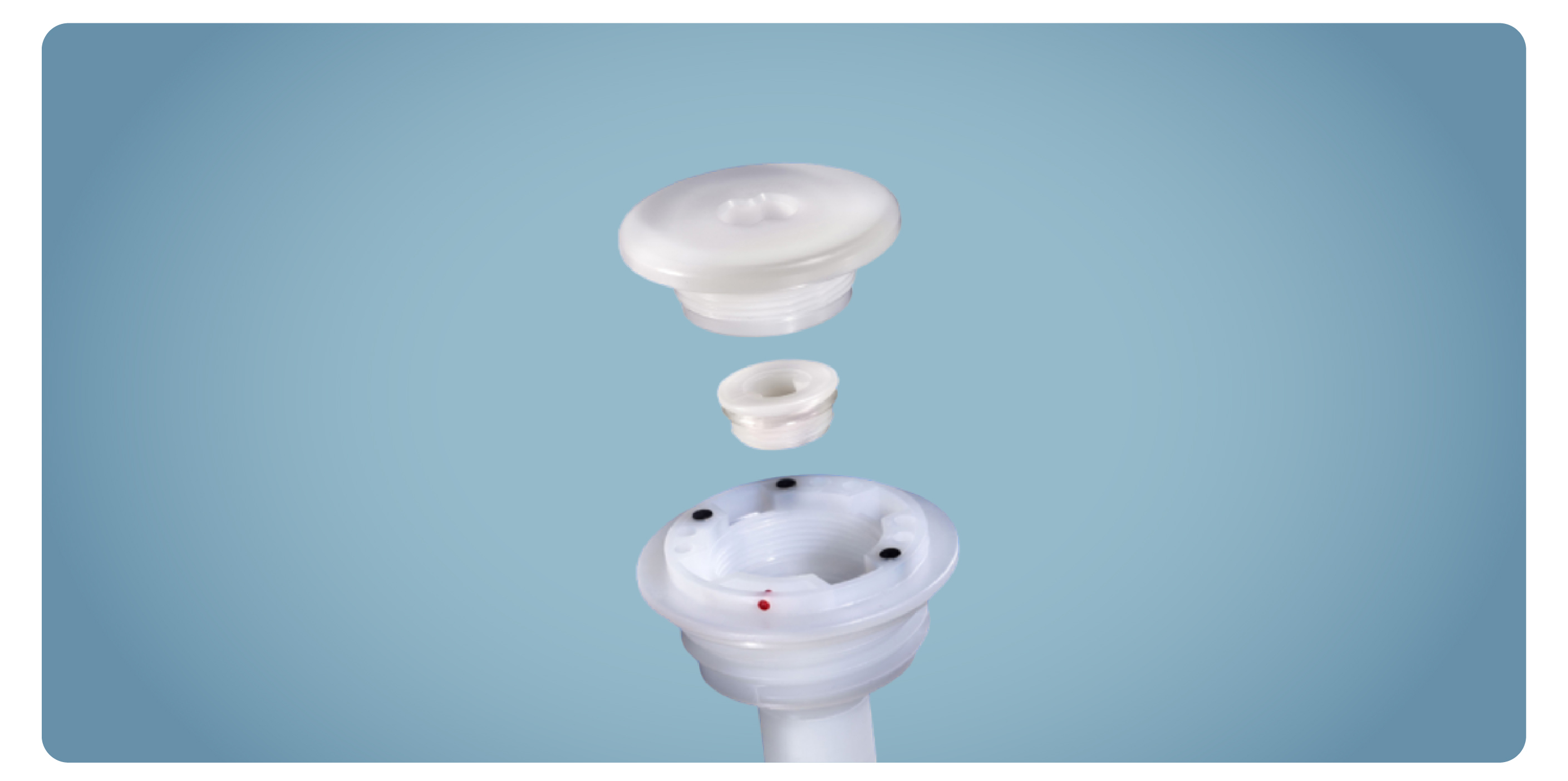

Type “T” closure

Type “T” - closed

The alternative to type “S” if a tamper proof closure needs to be attached.

Versions for QC3, QC3, M2-Series.

learn more →
Type "SU" closure

Type “SU” - double closure

The “SU” type offers double protection during transportation. The closure is screwed into the dip tube in addition to the “S” closure.

learn more →
