Configure your dispense and fill heads online now!
The patented pin-hole coding system with clear medium assignment reliably prevents product mix-ups.
Custom-made AS QC-dip tubes with or without bellow enable a best possible complete drainage.
Adapted to various lengths and threads, they ensure virtually complete drainage even from large containers.
For example, HDPE, PVDF and PFA – also available in a conductive version for hazardous areas.
Always completely made of plastic and thus protected against corrosion.
Especially developed variants made from stainless steel for the pharmaceutical industry complete the portfolio.
For 5 to 1000 litre container and packaging systems.
QC is the right solution for IBCs, drums or canisters, for every connecting thread metric or buttress thread. And it can empty every format more efficiently than you've ever seen before.
The integrated ventilation channels in the dip tube and the Dispense Head ensure safe ventilation of the container during emptying. They also prevent any potential overpressure in the container from escaping uncontrollably when the dip tube closure is opened, as it can for example happen with alternative dip tubes.
In the QC2 and G-Series product line, chemicals can be recirculated / filled back into the container through a second dip tube and fill head, which are mounted to the second drum opening.
A variety of closures and matching tamper-proof closures protect the medium during transport.
Also available in versions with built-in ventilation for media such as hydrogen peroxide.
Over 1000 standard variants. Custom-made and preinstalled. For virtually every length, for every container. With and without bellow for virtually complete emptying.
The dip tubes of the different product lines are the counterparts to the associated Dispense and Fill Heads.
You can choose from the following product lines:
For more information, click on the respective product line.
Combine Dip Tubes of the different product lines with the suitable option for your application.

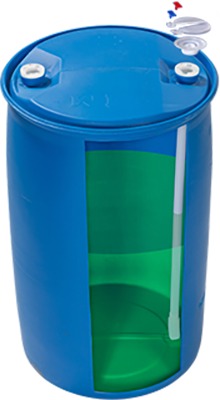

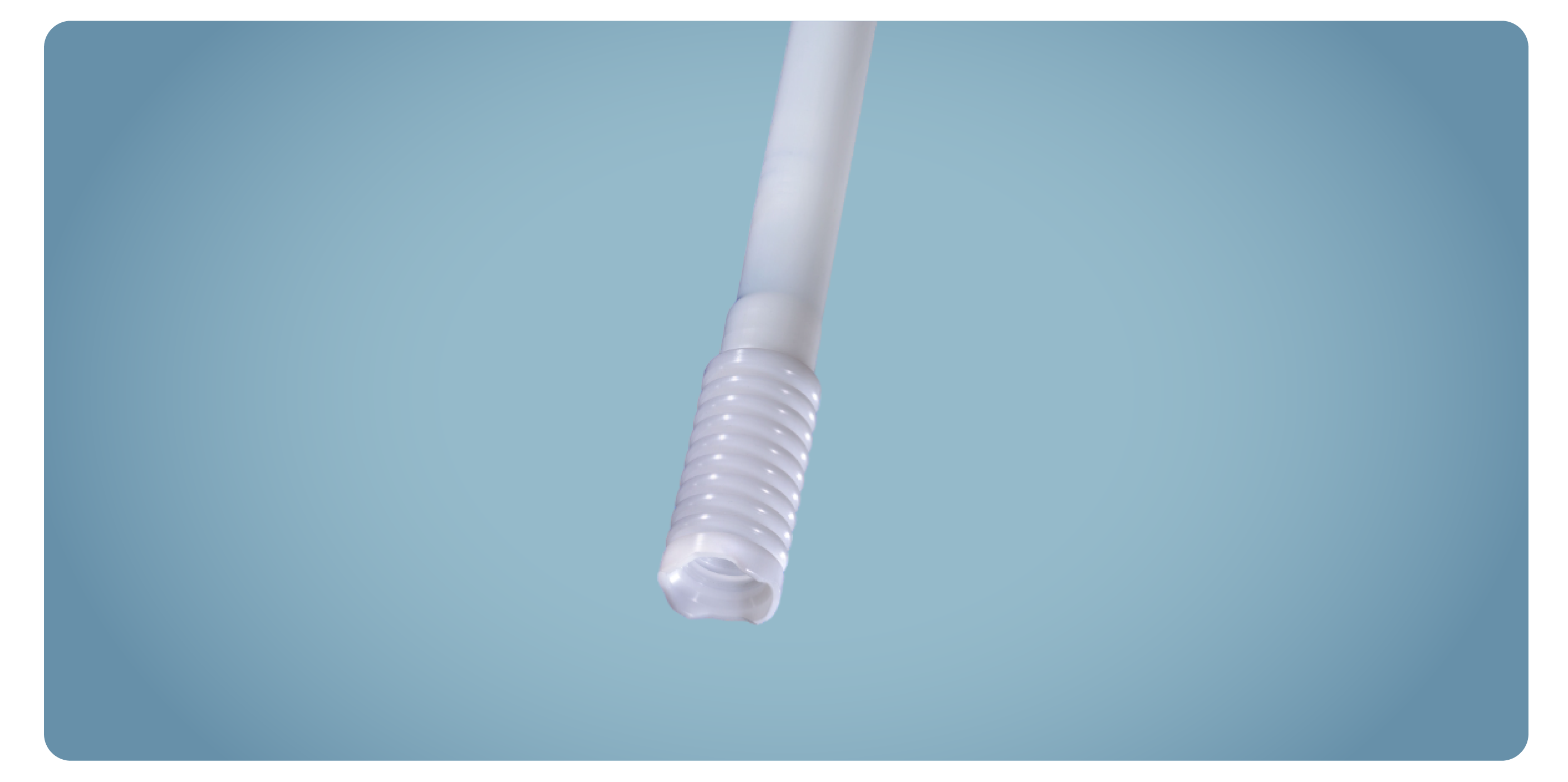

The flexible bellows at the end of the dip tube can sit on the bottom of the container and thus enables the container to be completely emptied.
Using mixing nozzles on recirculation dip tubes, suspensions such as slurries can be optimally prepared below the liquid level.

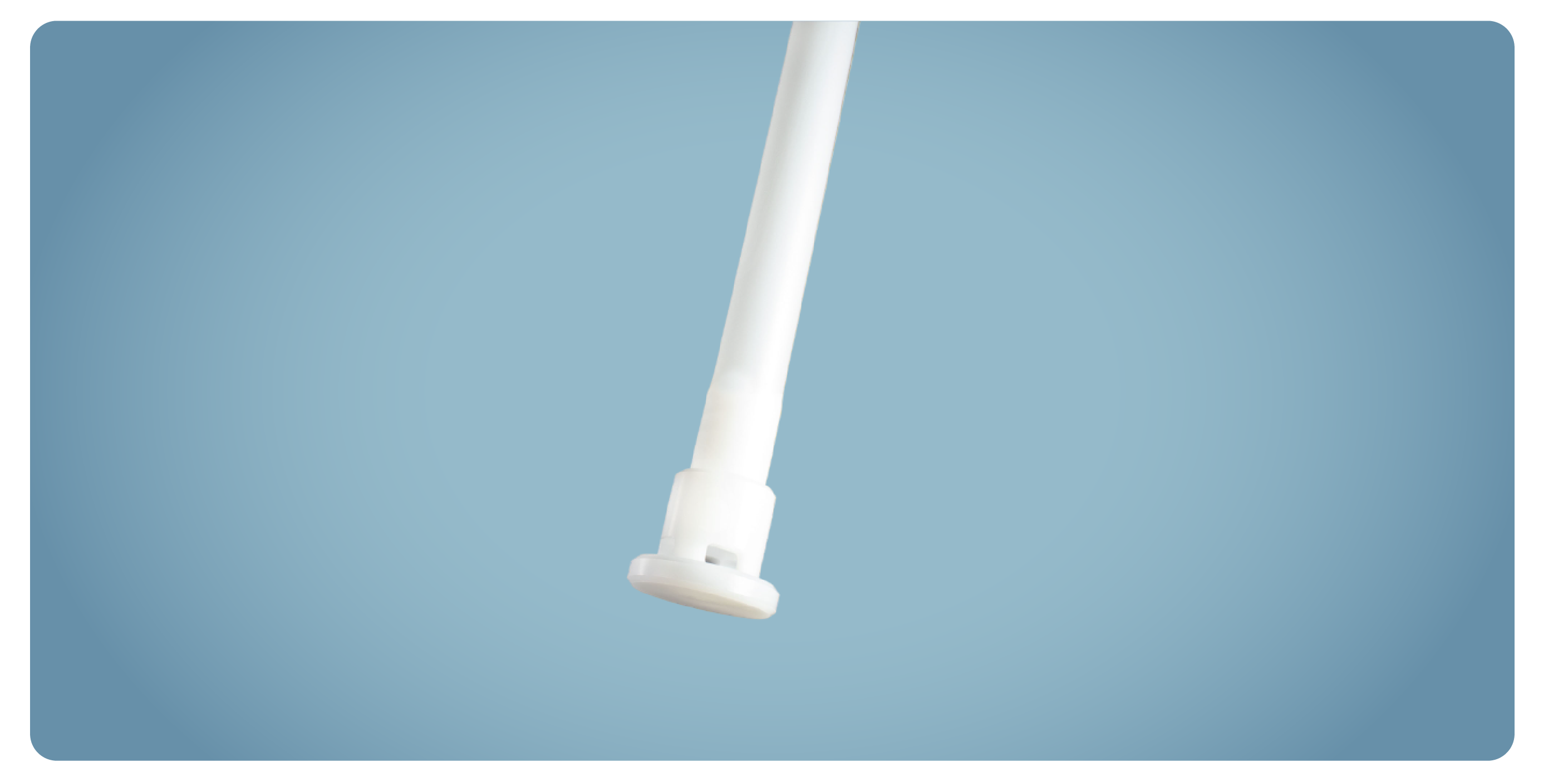

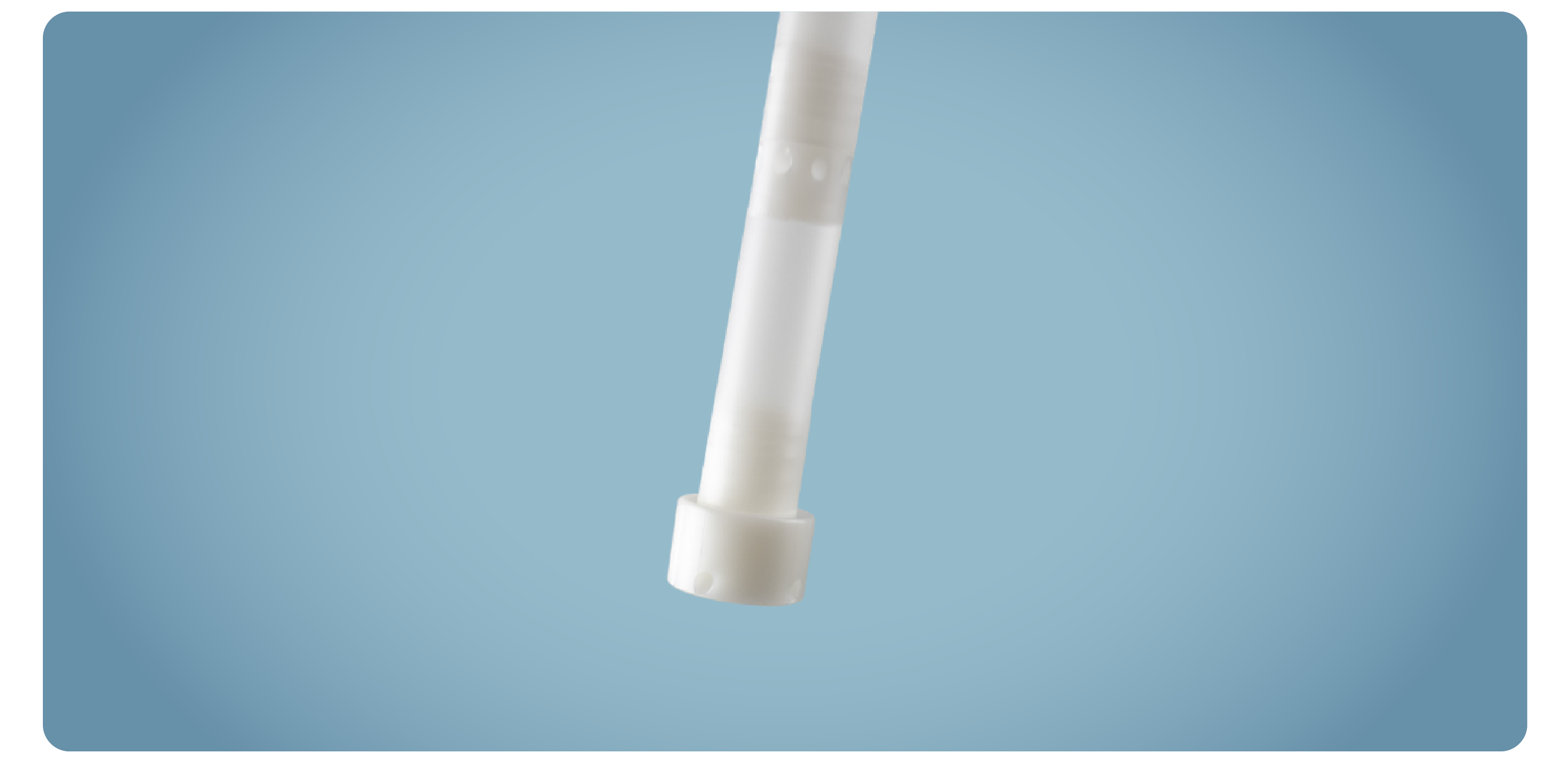

Dip tubes with bottom-plate enable suction above the settled, too large particle aggregates in slurries.

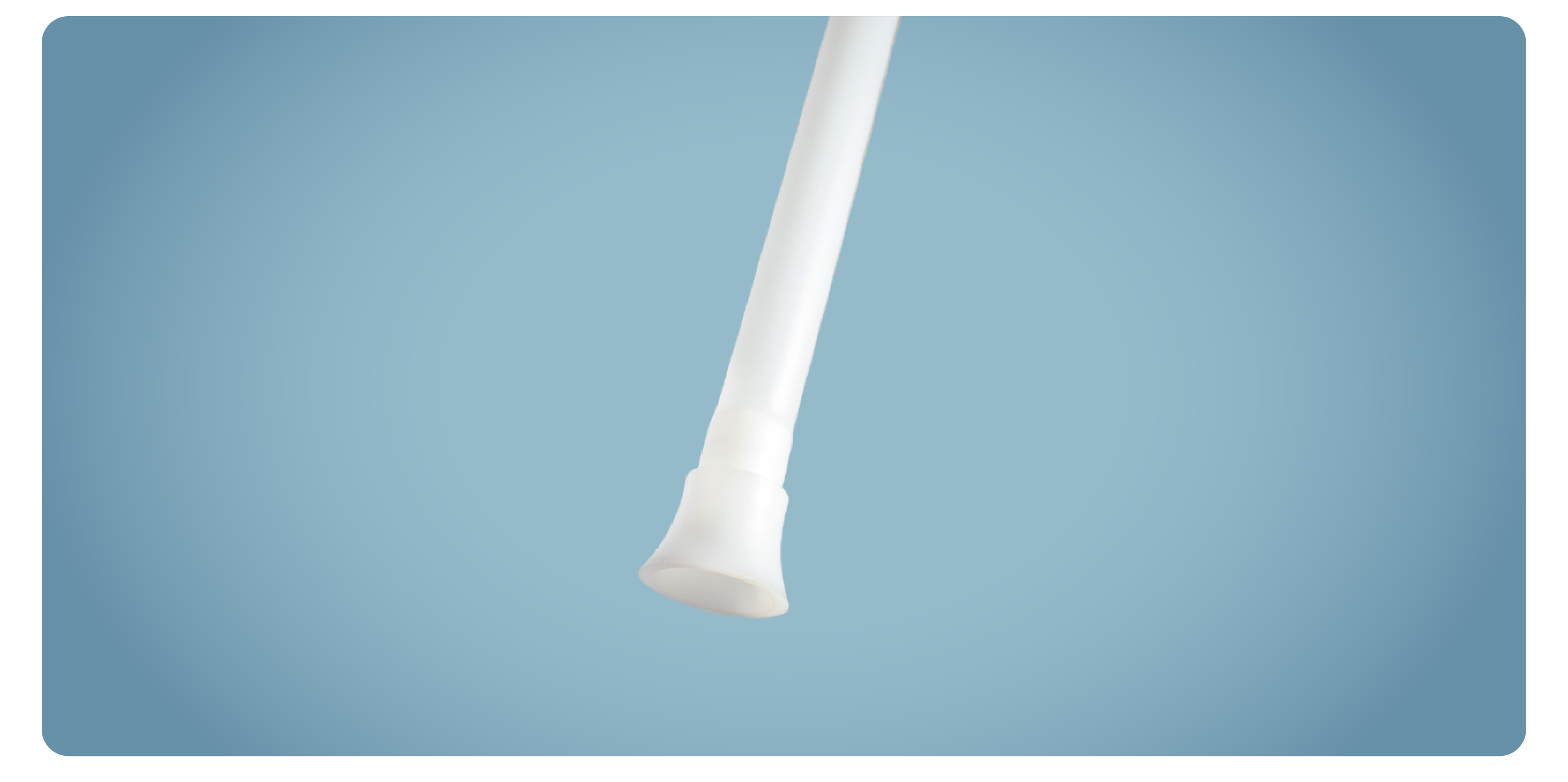

The streamlined design of the suction cone at the end of the dip tube allows an optimal suction of viscous media and those containing solids.

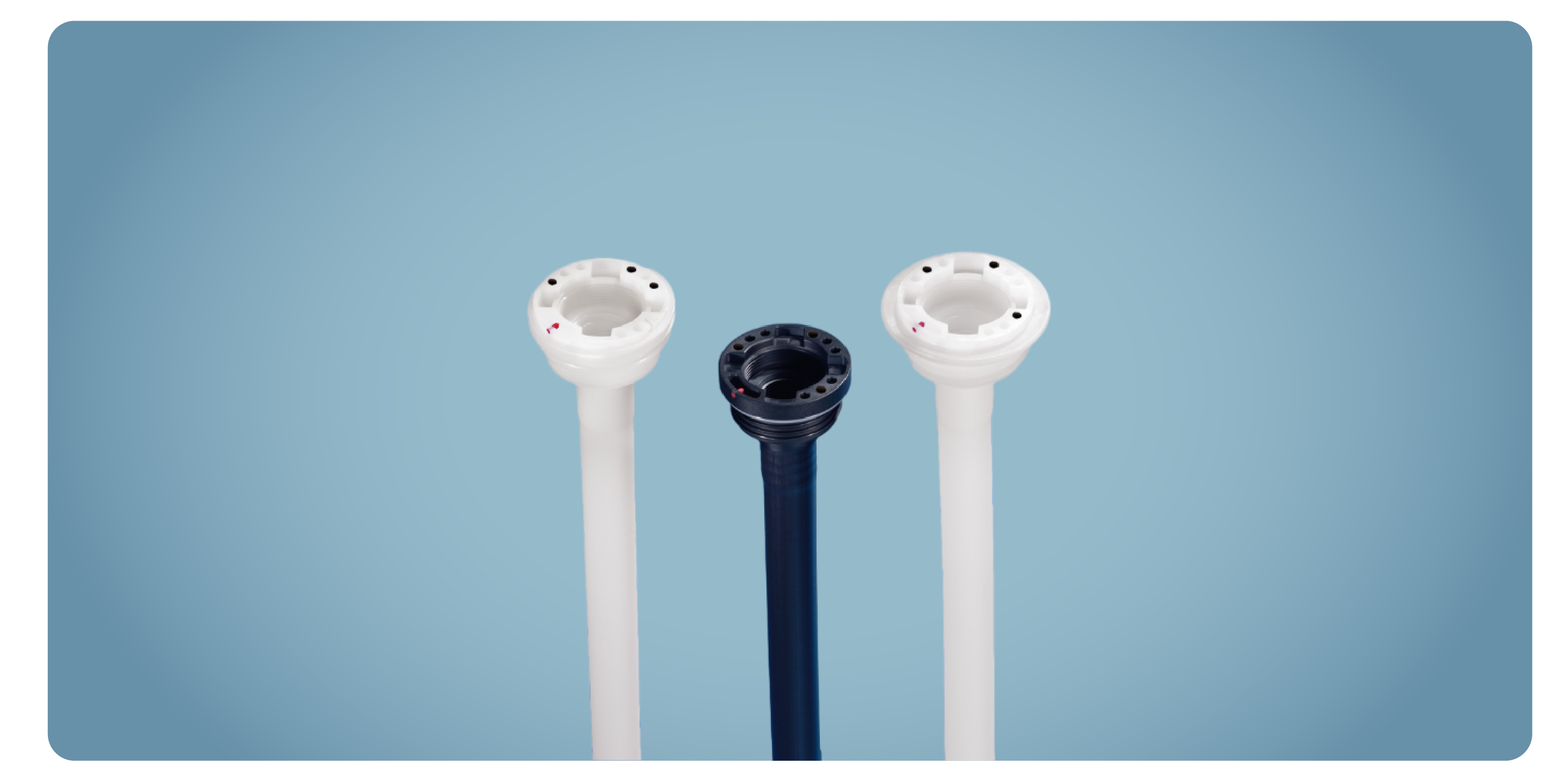

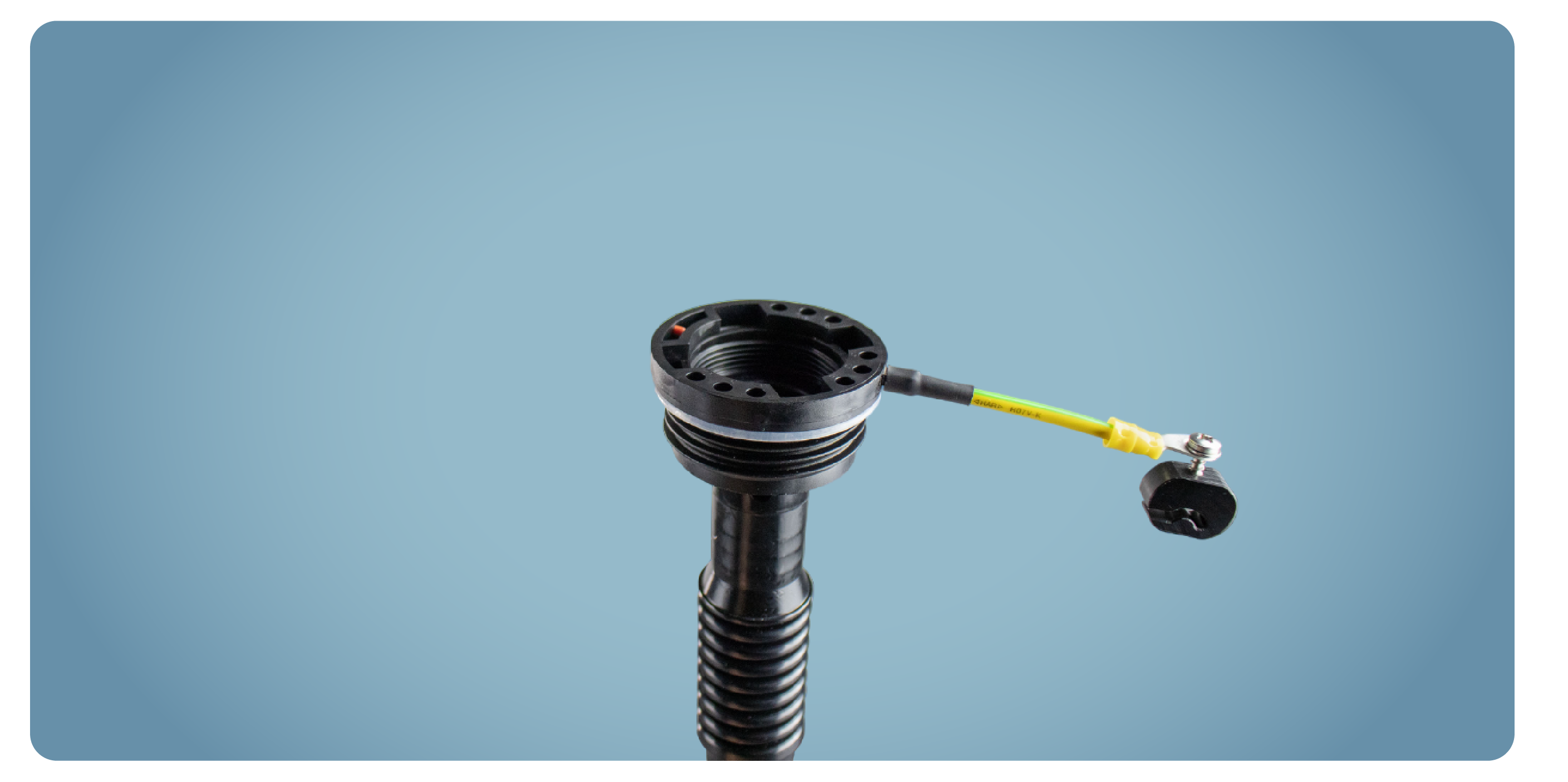

Dip tubes made of electrically conductive plastic, for dispensing flammable liquids and for use in explosive atmospheres.
If the container is not transported with the dip tube, the dip tube can also be inserted manually by hand.

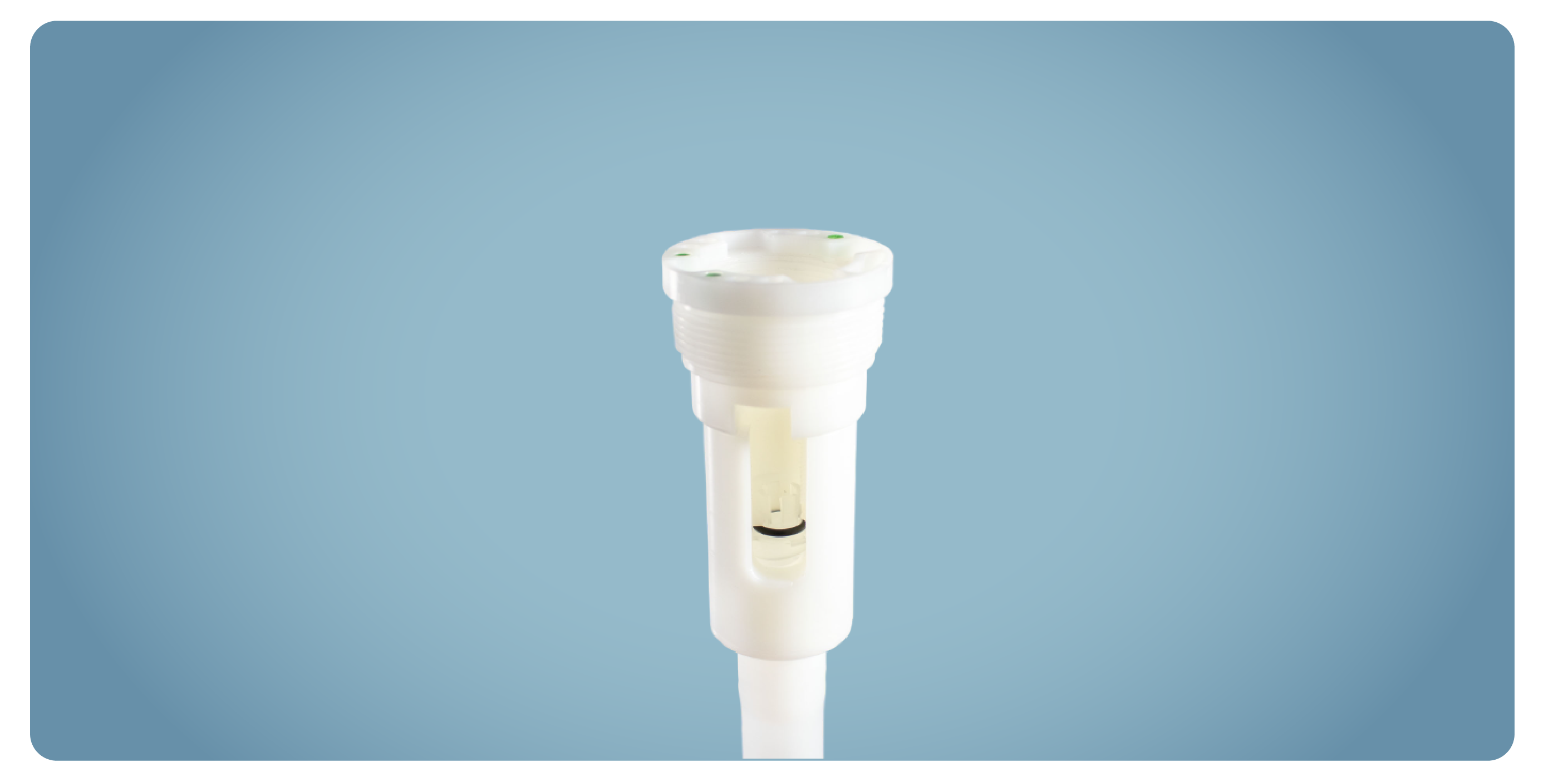

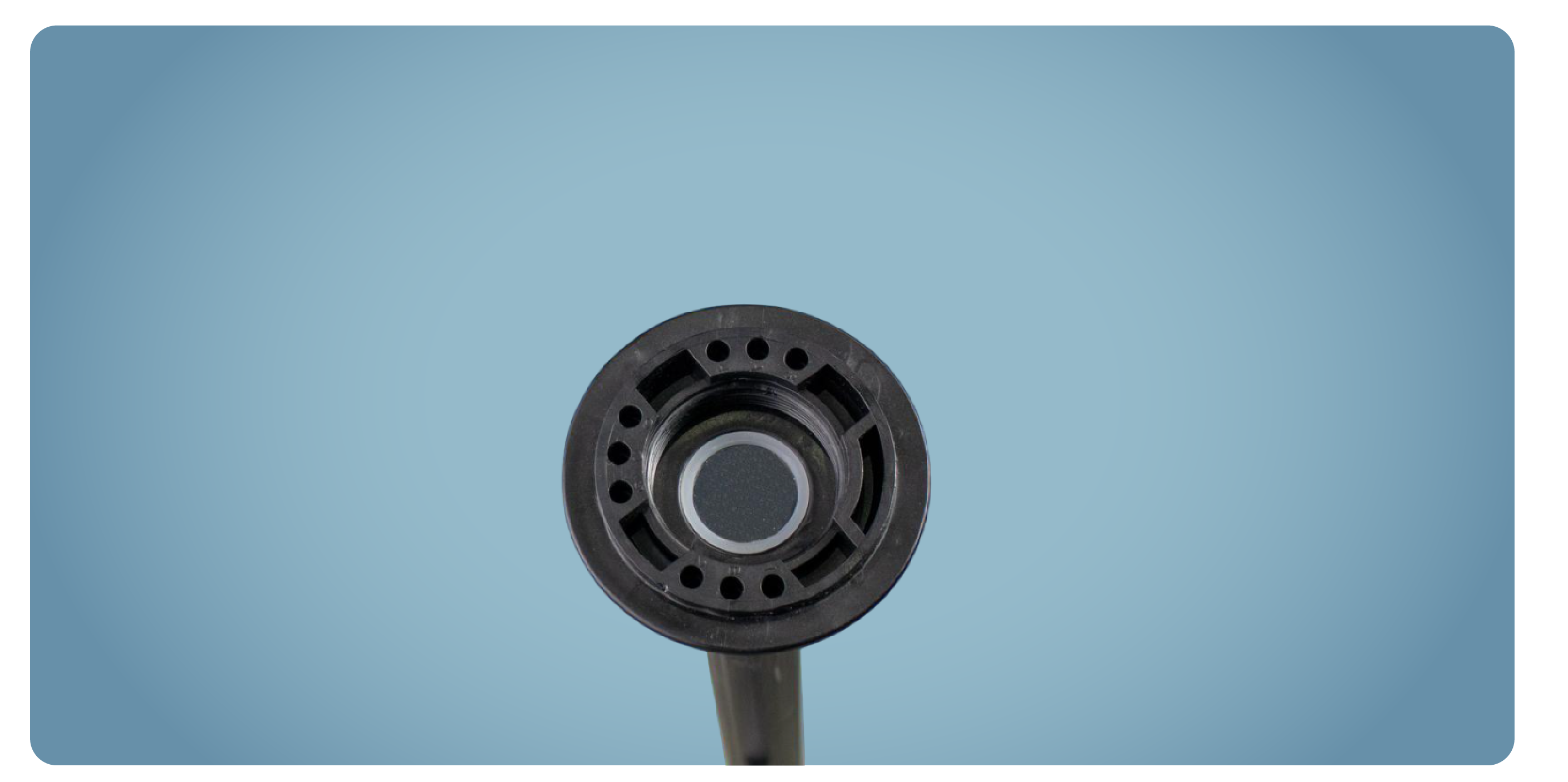

Dip tubes with an integrated check valve seal the container up to the connection of the Dispense Head.
A film made of PP inserted in the dip tube acts as an emission protection when connecting the Dispense Head.
Our QC dip tubes can also be purchased uncoded and coded to the appropriate chemical as needed.

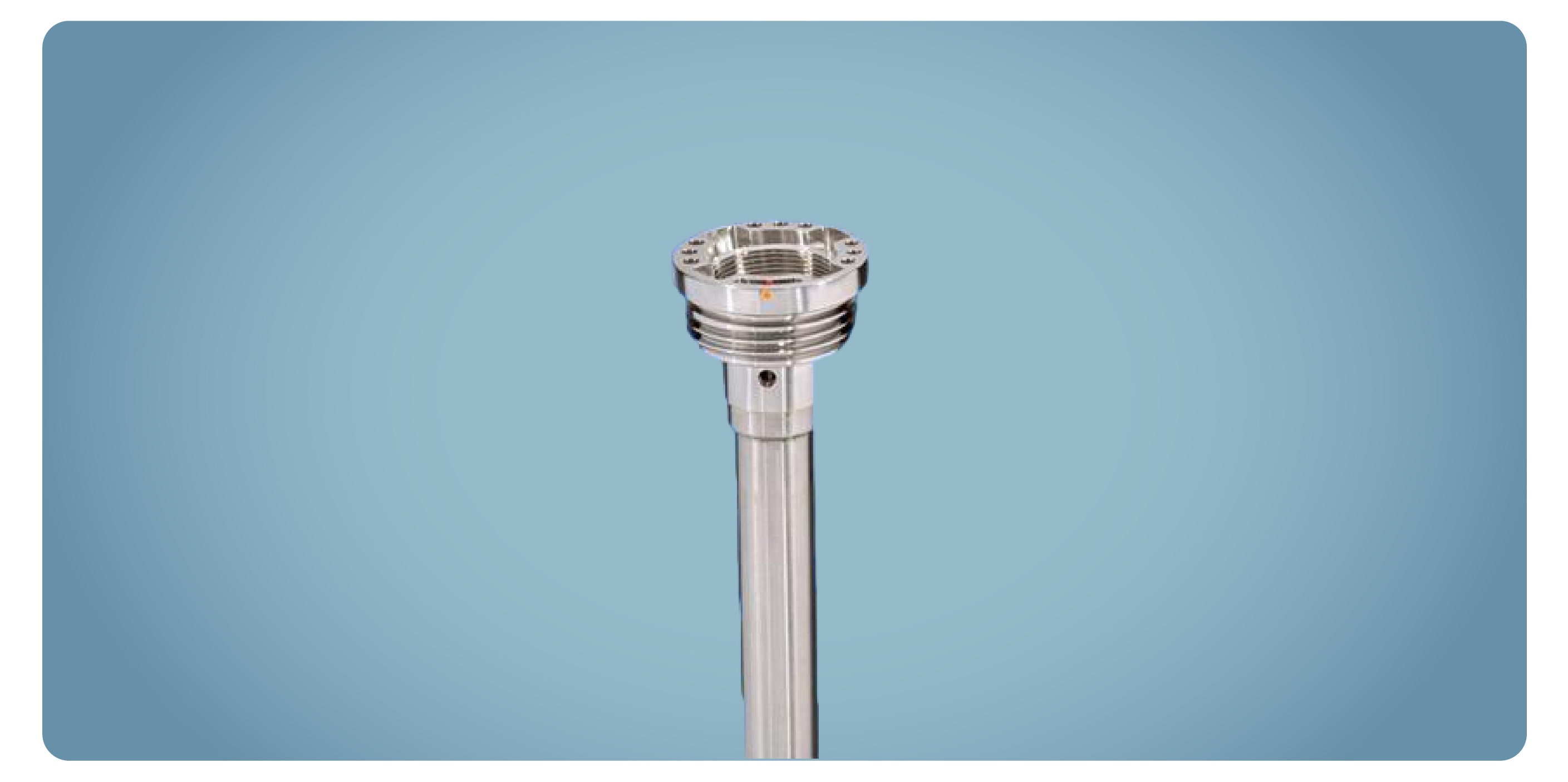

Specially developed for the pharmaceutical industry, our new
stainless steel Dip Tubes now also meet the regulations concerning FDA materials in explosion proof areas.
