QC2 Dip Tubes

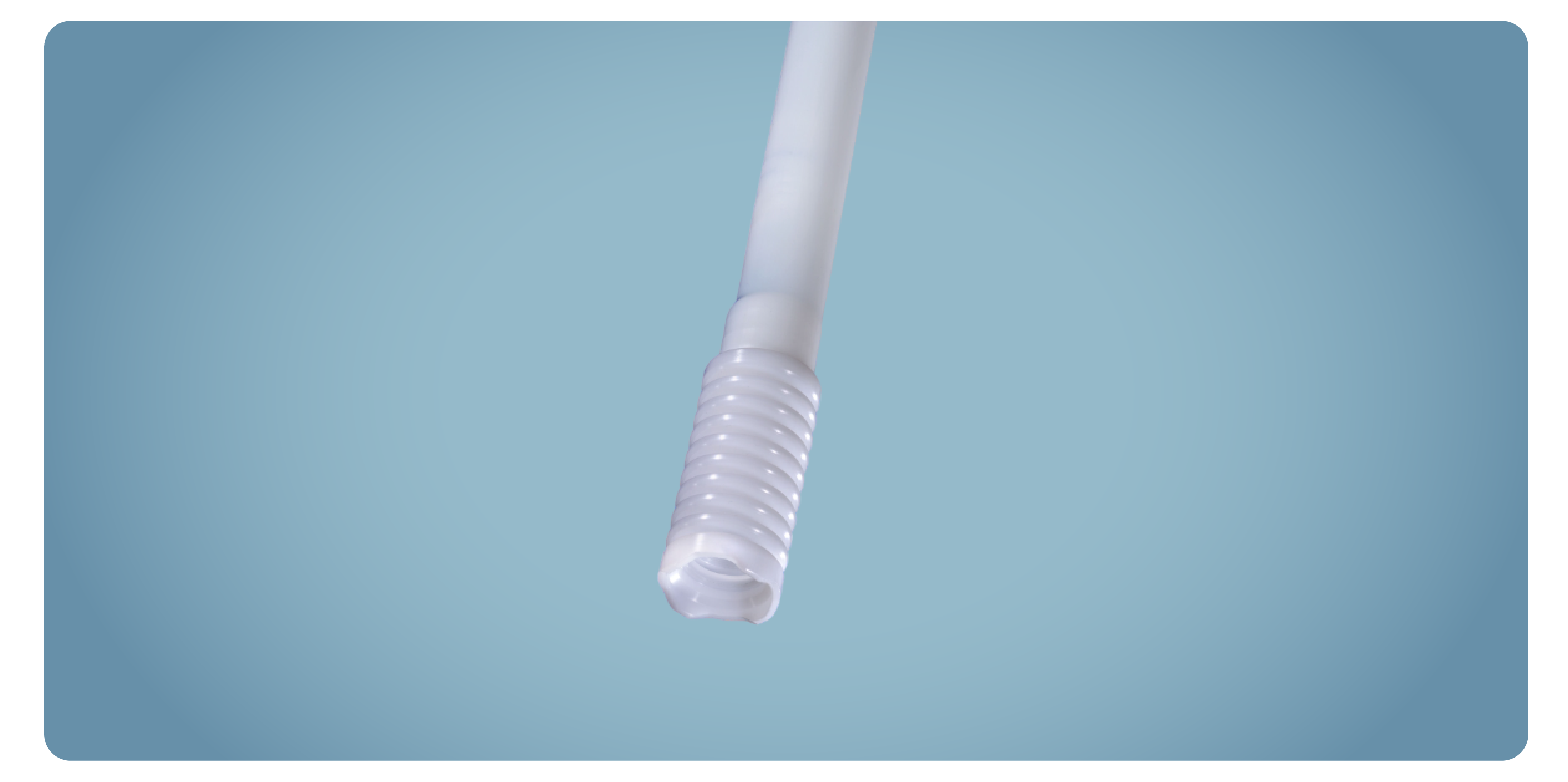

The flexible bellows at the end of the dip tube can sit on the bottom of the container and thus enables the container to be completely emptied.

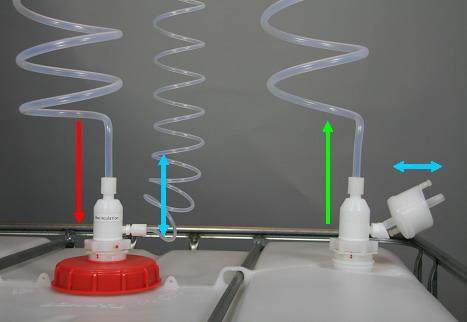

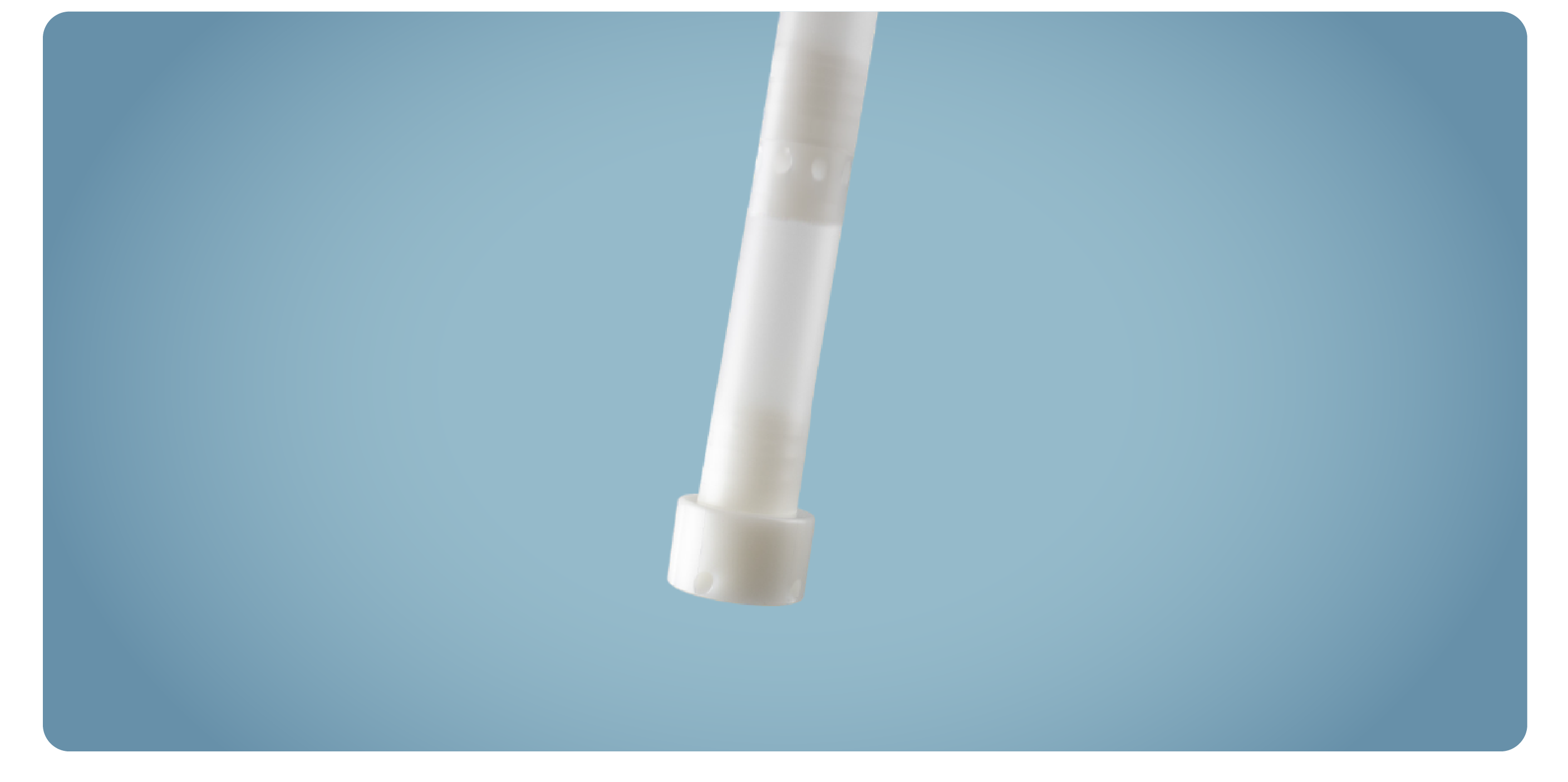

Using mixing nozzles on recirculation dip tubes, suspensions such as slurries can be optimally prepared below the liquid level.

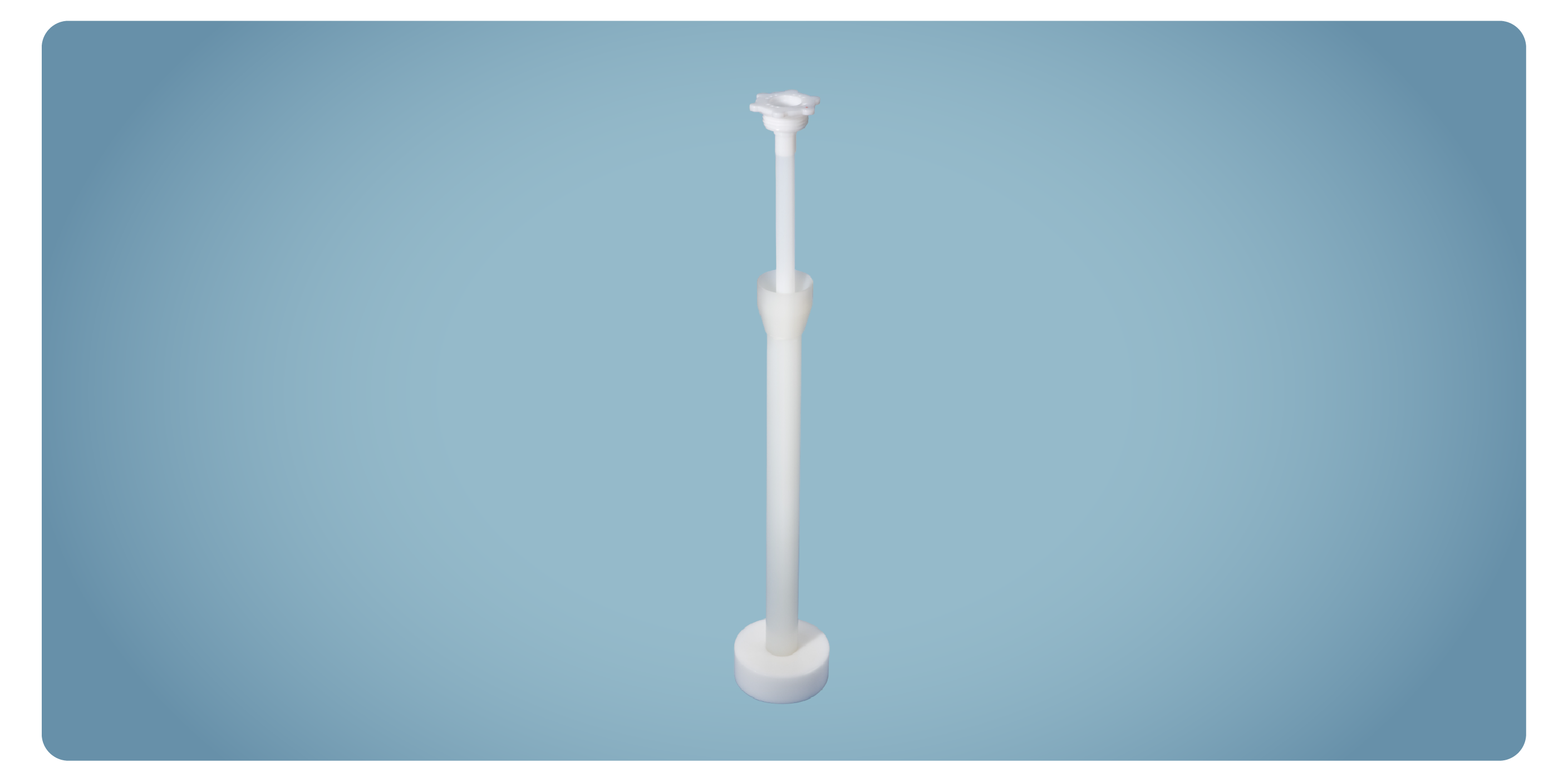

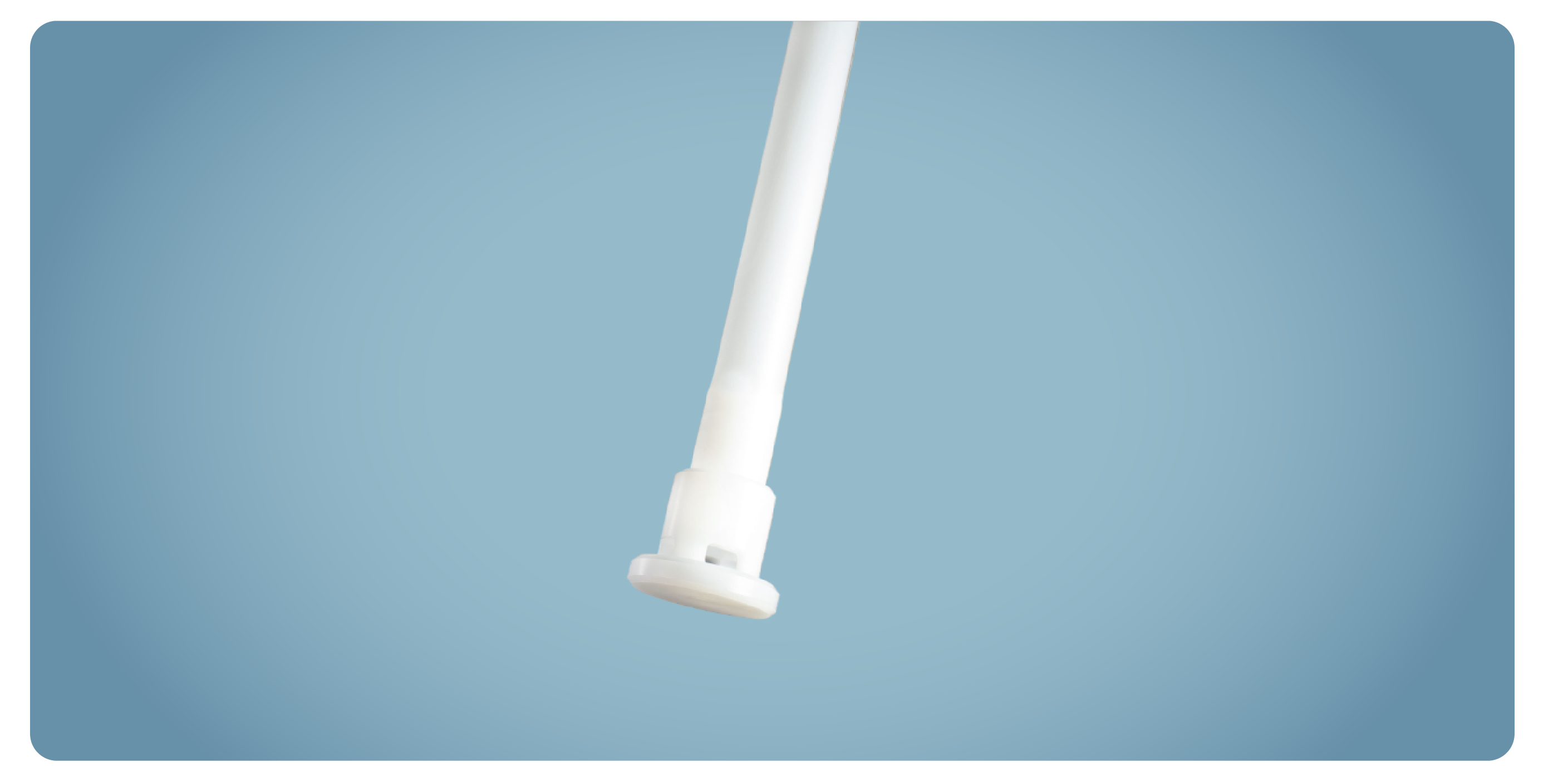

Dip tubes with bottom-plate enable suction above the settled, too large particle aggregates in slurries.

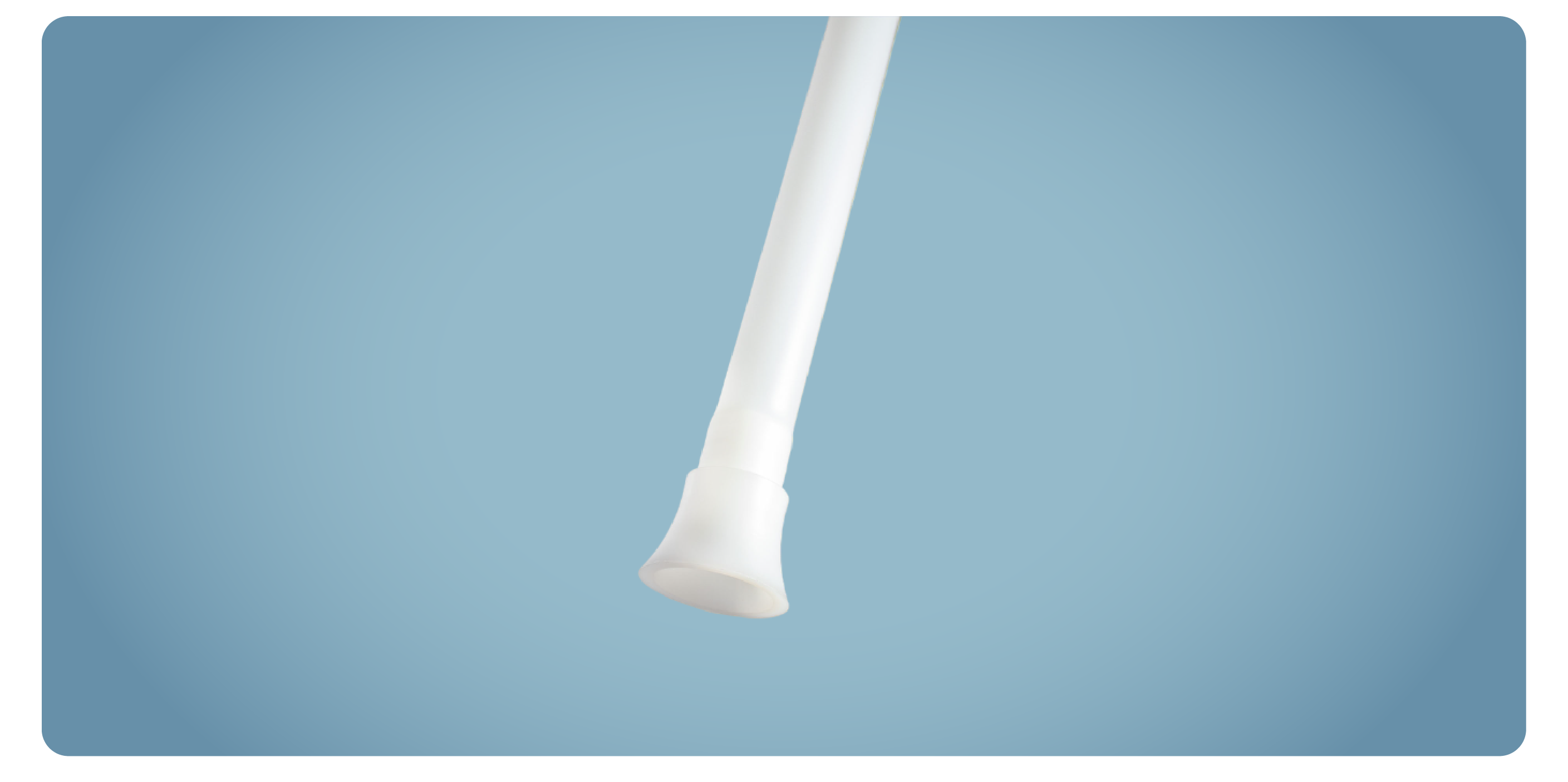

The streamlined design of the suction cone at the end of the dip tube allows an optimal suction of viscous media and those containing solids.

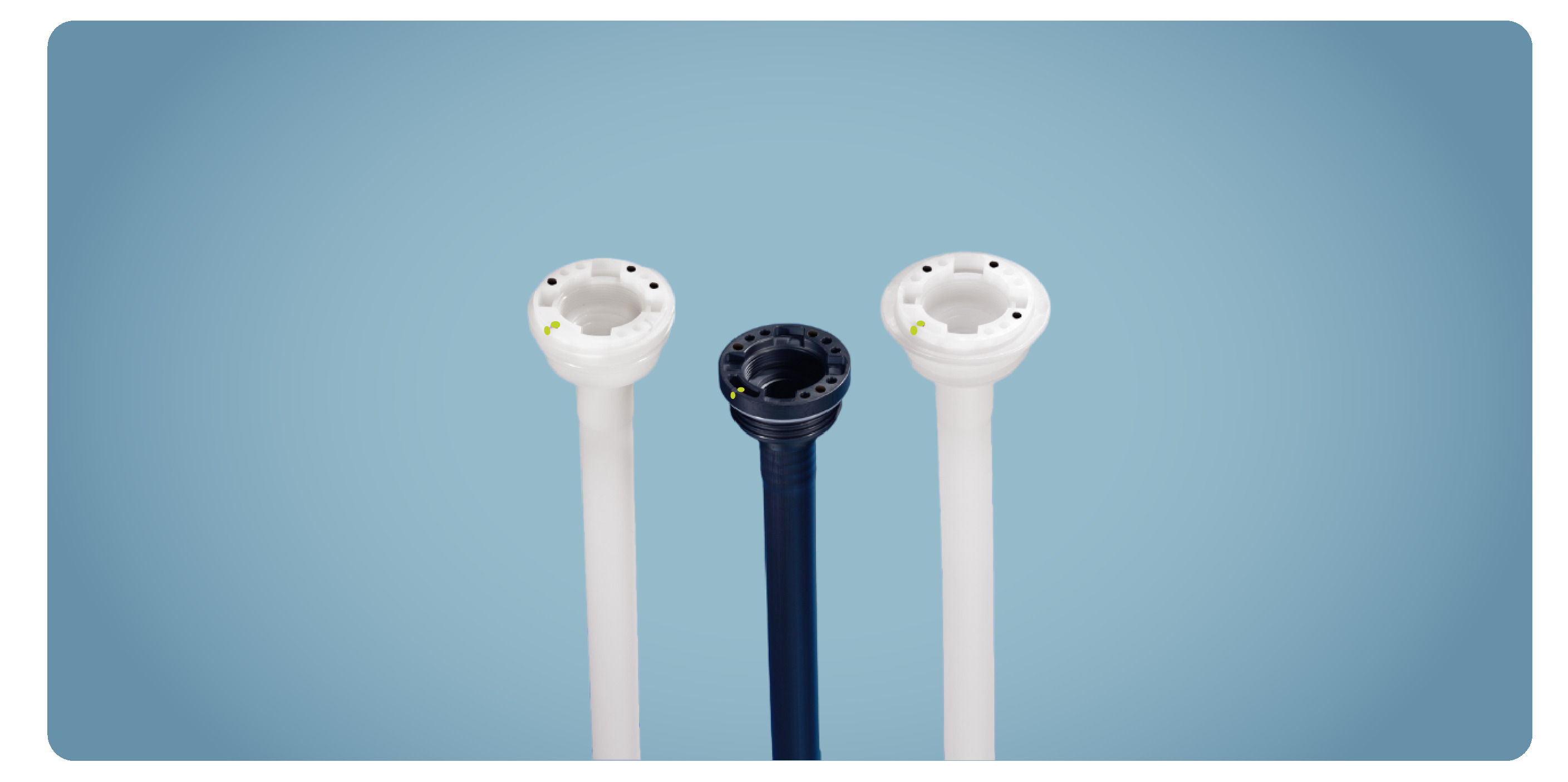

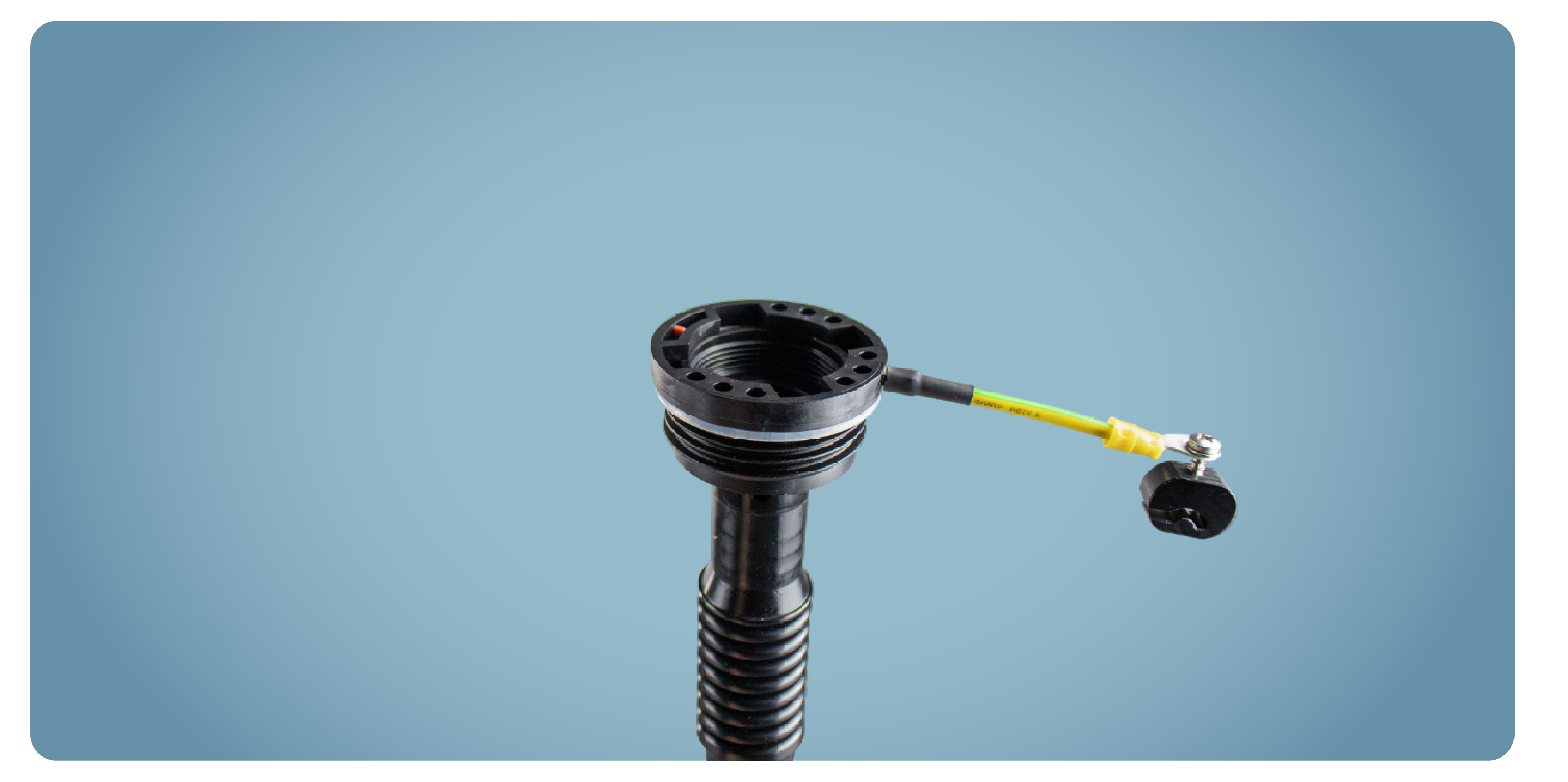

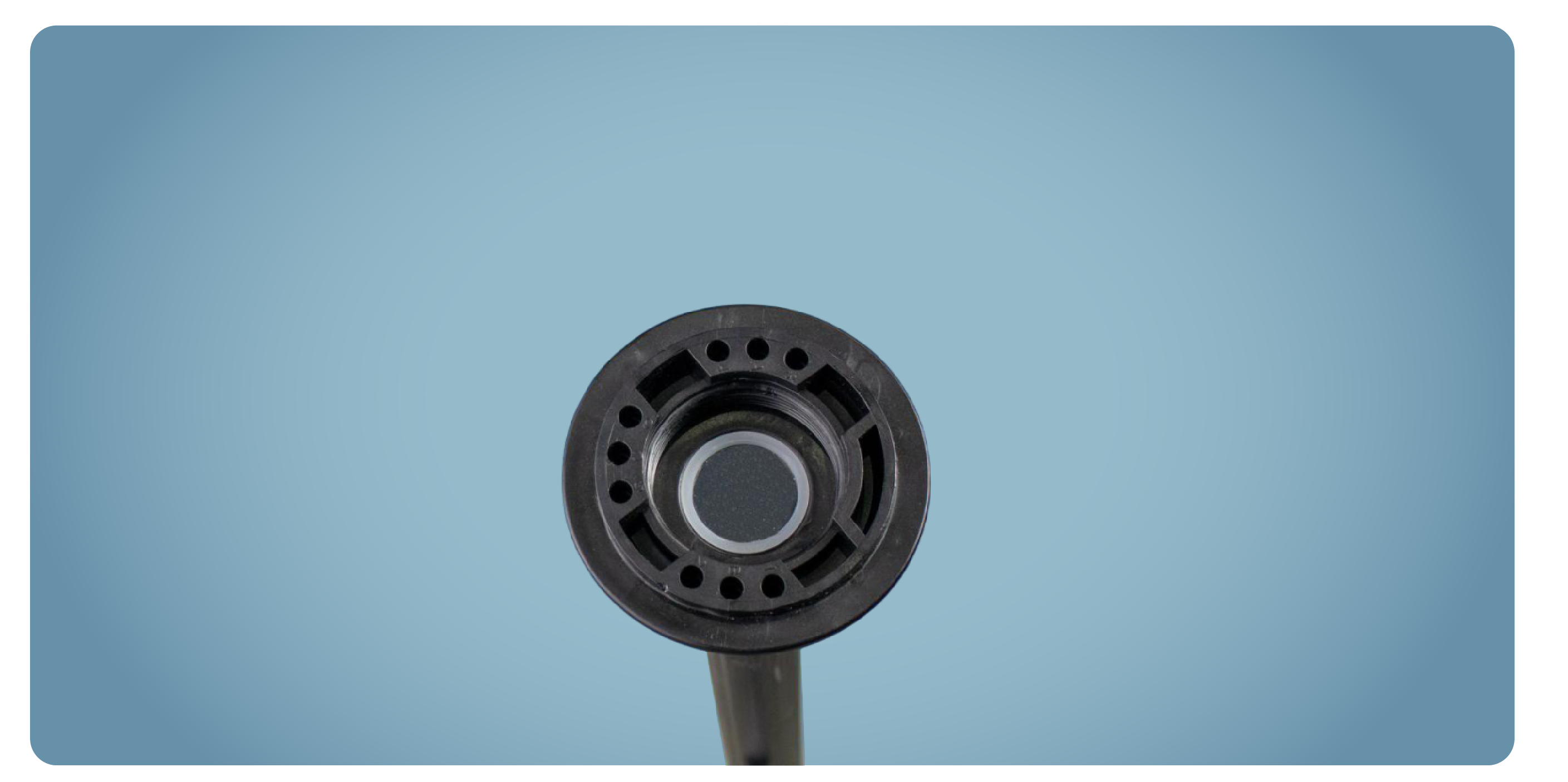

Dip tubes made of electrically conductive plastic, for dispensing flammable liquids and for use in explosive atmospheres.

If the container is not transported with the dip tube, the dip tube can also be inserted manually by hand.

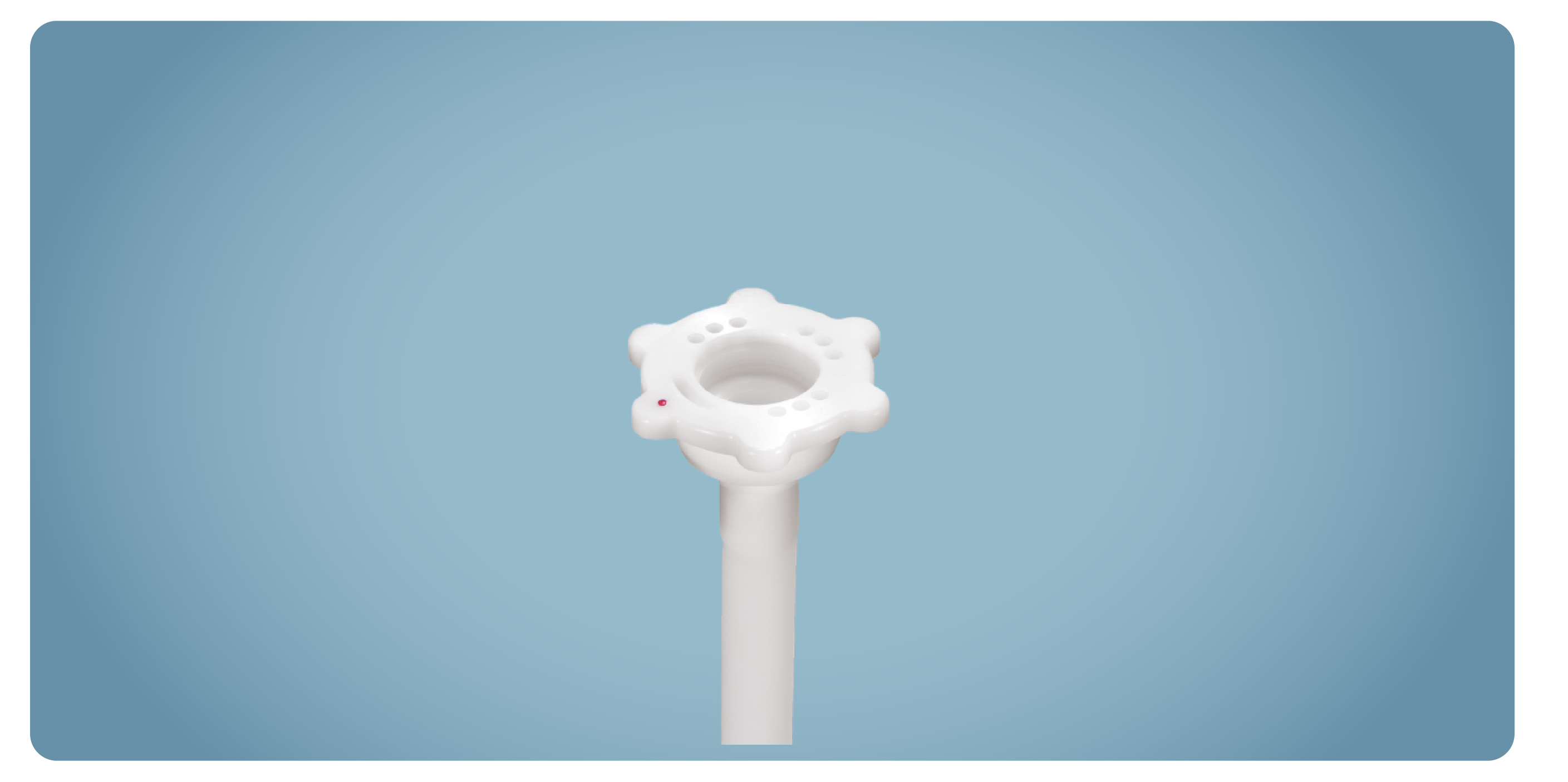

• Optional wings at the dip tube stopper

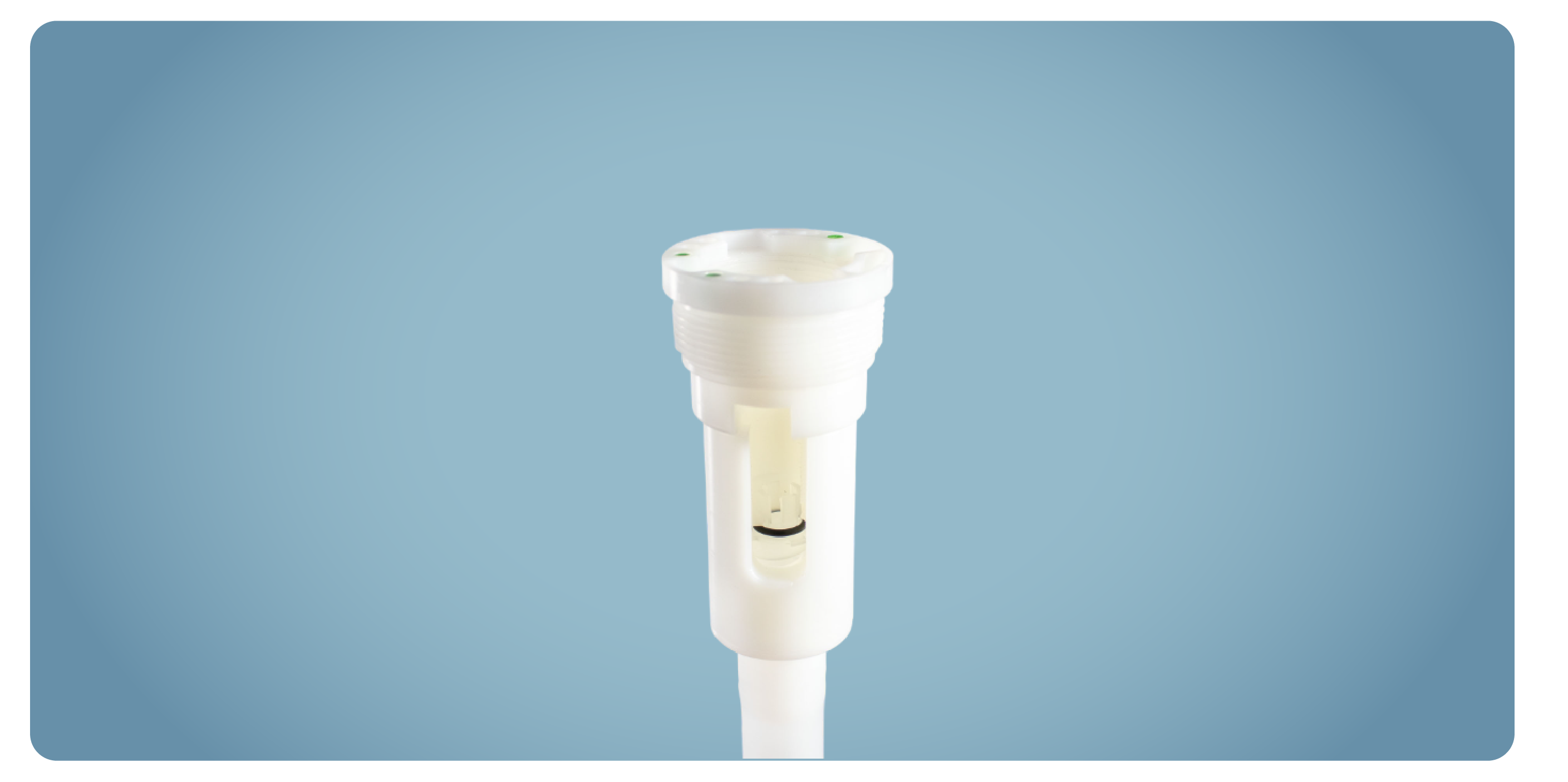

Dip tubes with an integrated check valve seal the container up to the connection of the Dispense Head.

• Made out of 100% plastic

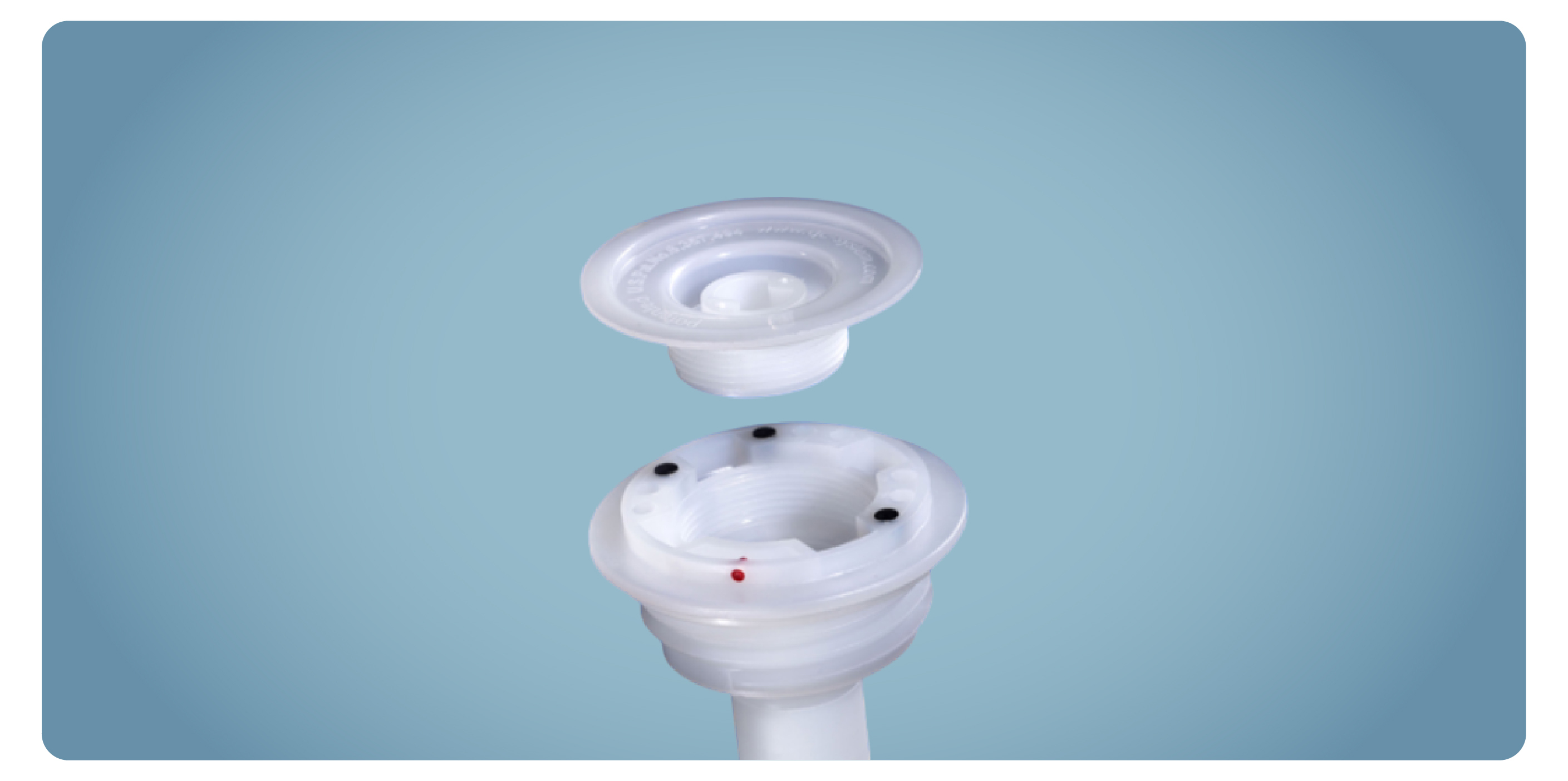

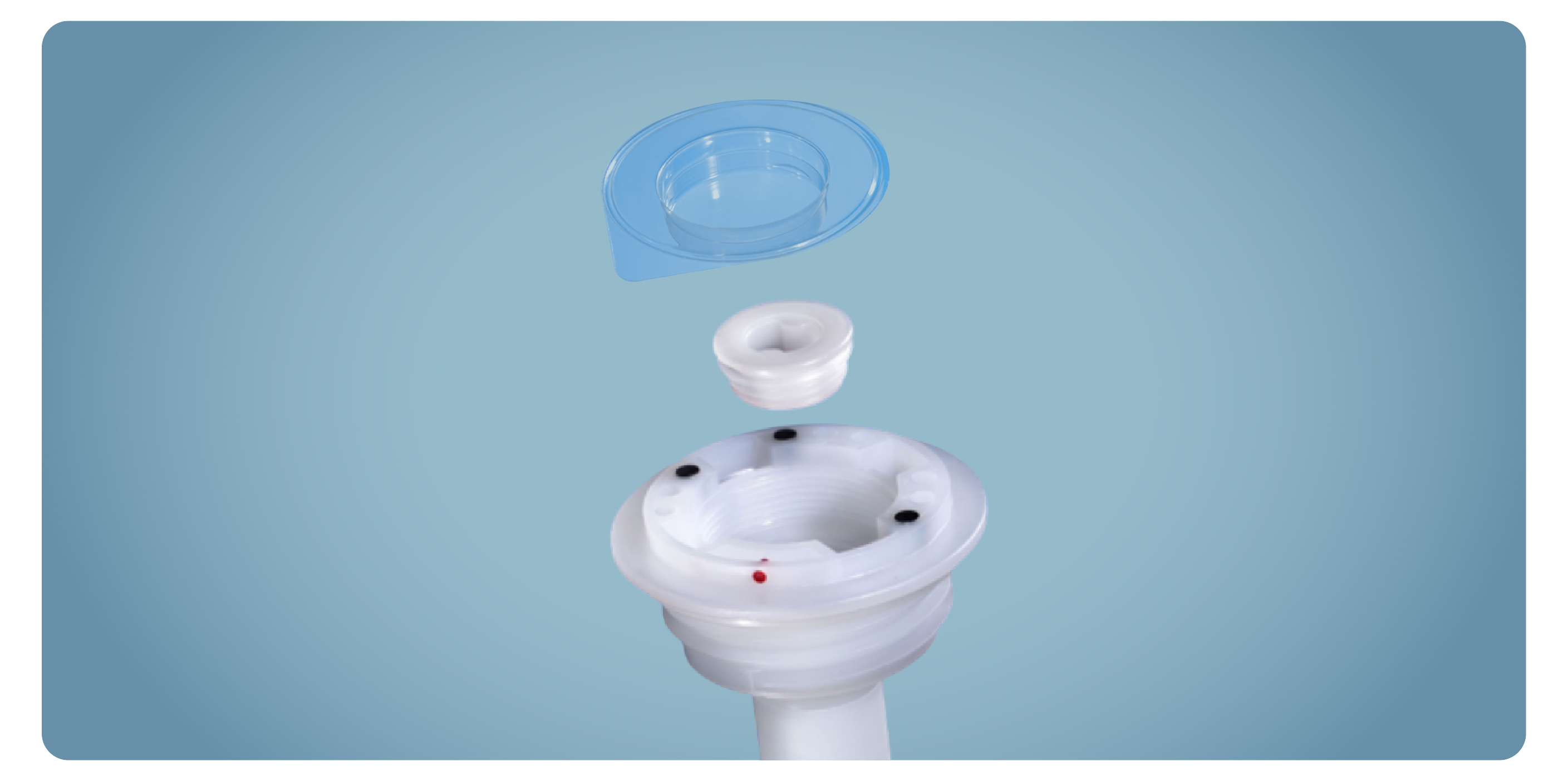

A film made of PP inserted in the dip tube acts as an emission protection when connecting the Dispense Head.

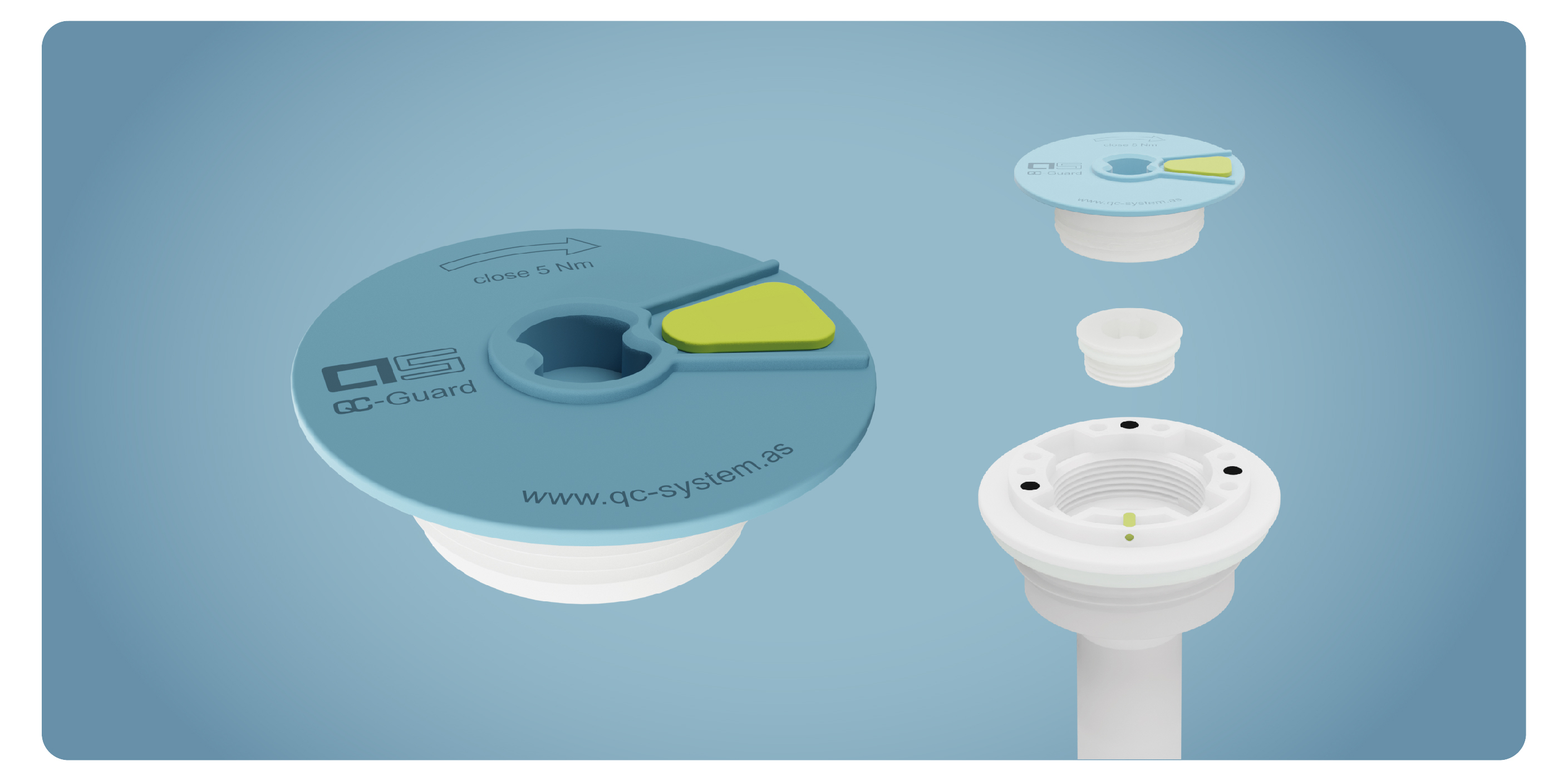

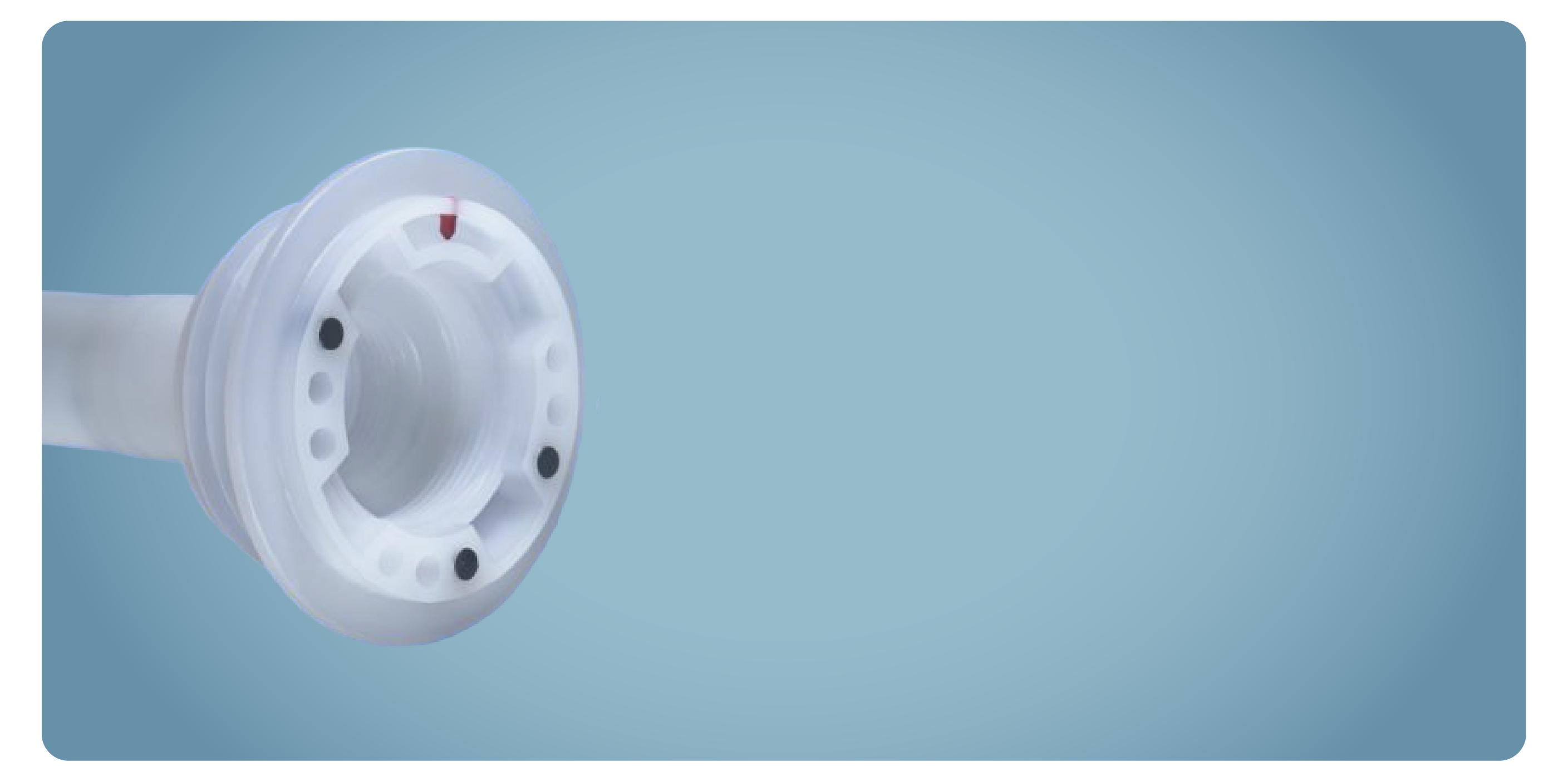

Our QC dip tubes can also be purchased uncoded and coded to the appropriate chemical as needed.

The most widespread dip tube closure in the form of a 3/4” or 1” stopper.

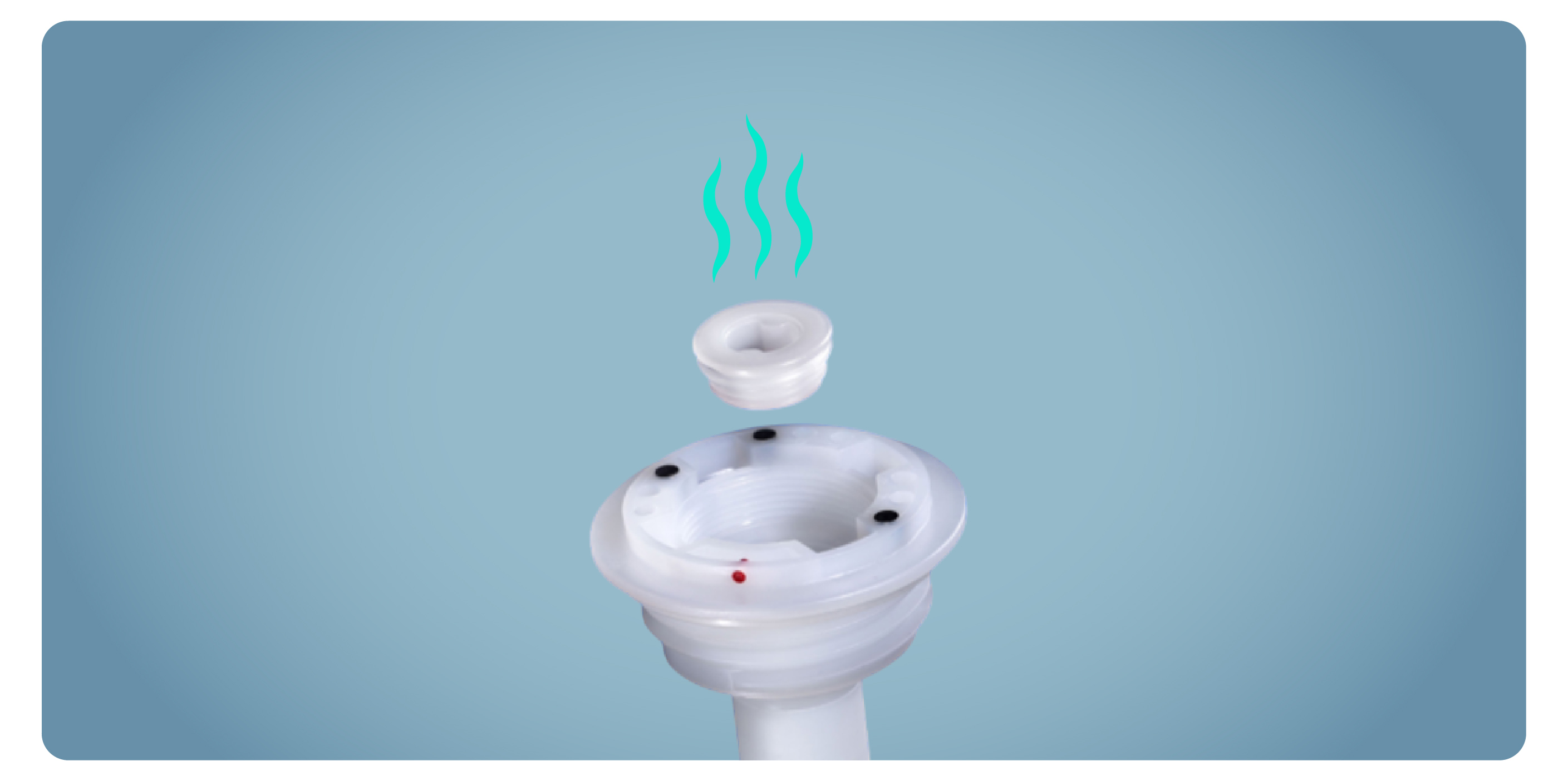

The ventilated version of type “S” with integrated PTFE non-woven fabric. Suitable for the transportation of hydrogen peroxide.

Versions for QC2, G-Series, M2-Series

The alternative to type “S” if a tamper proof closure needs to be attached.

Versions for QC3, QC3, M2-Series.

The ventilated version of type “T” with integrated PTFE non-woven fabric. Suitable for the transportation of hydrogen peroxide.

Versions for QC2, QC3, M2-Series.

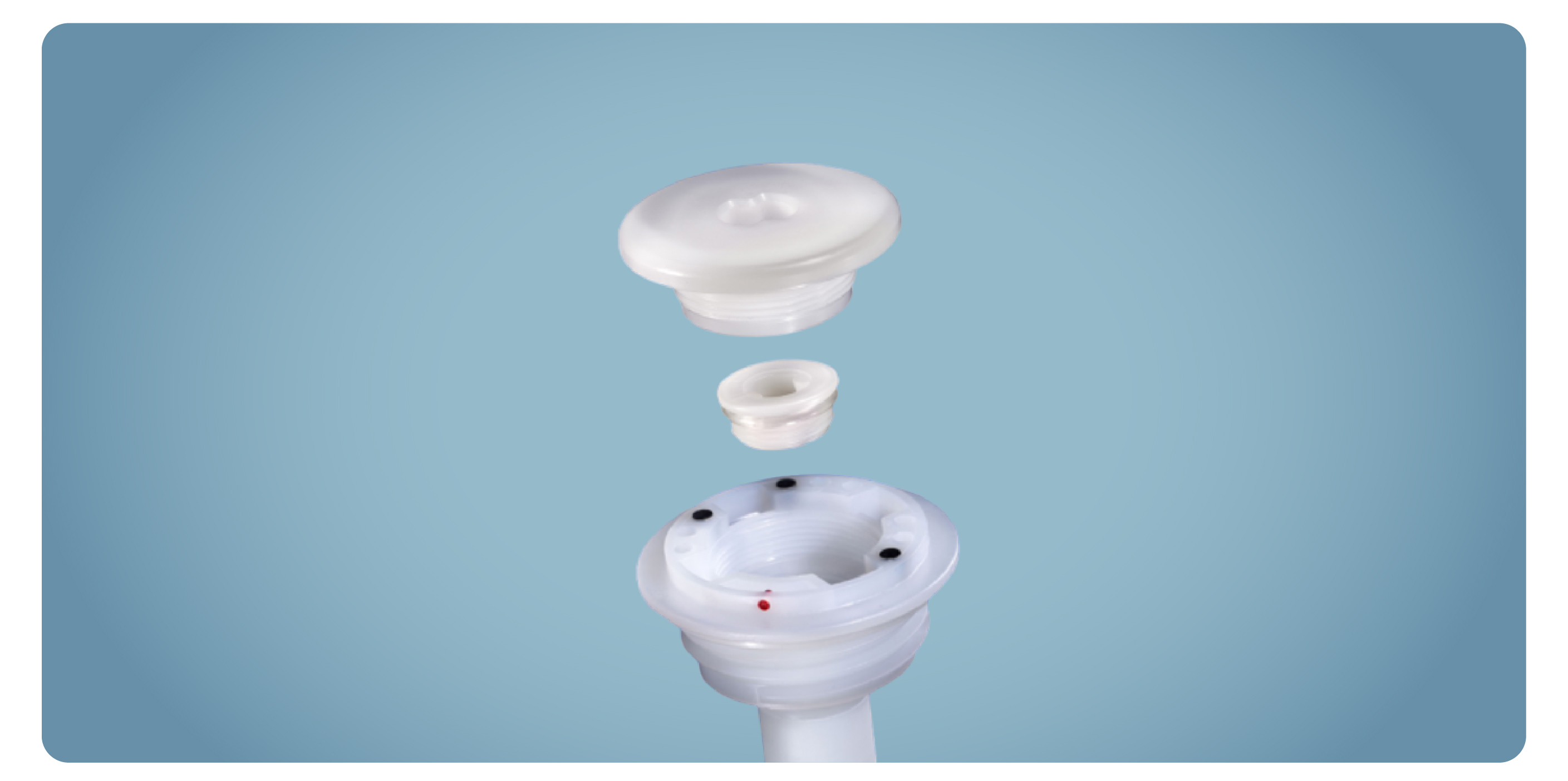

The “SU” type offers double protection during transportation. The closure is screwed into the dip tube in addition to the “S” closure.

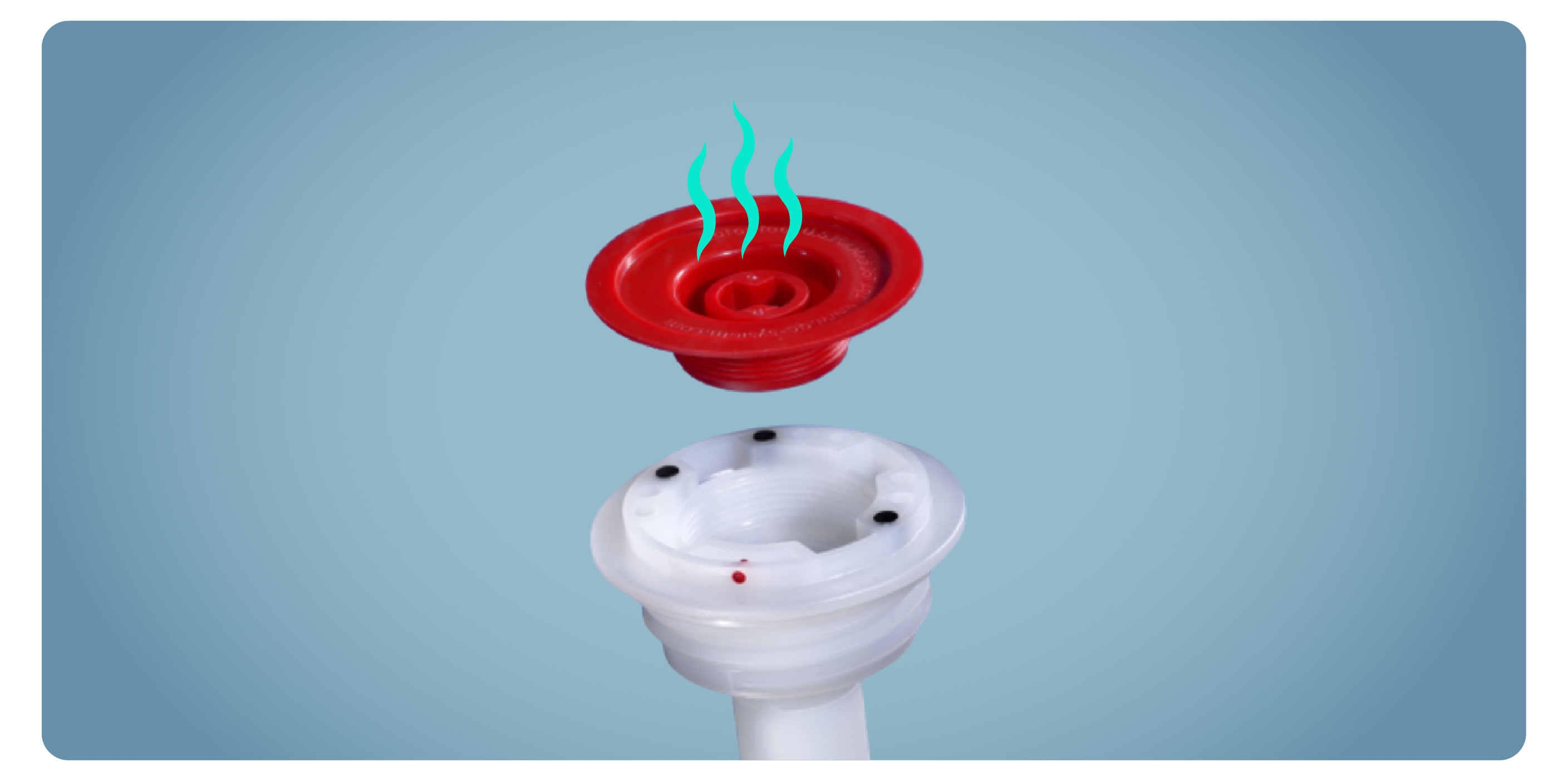

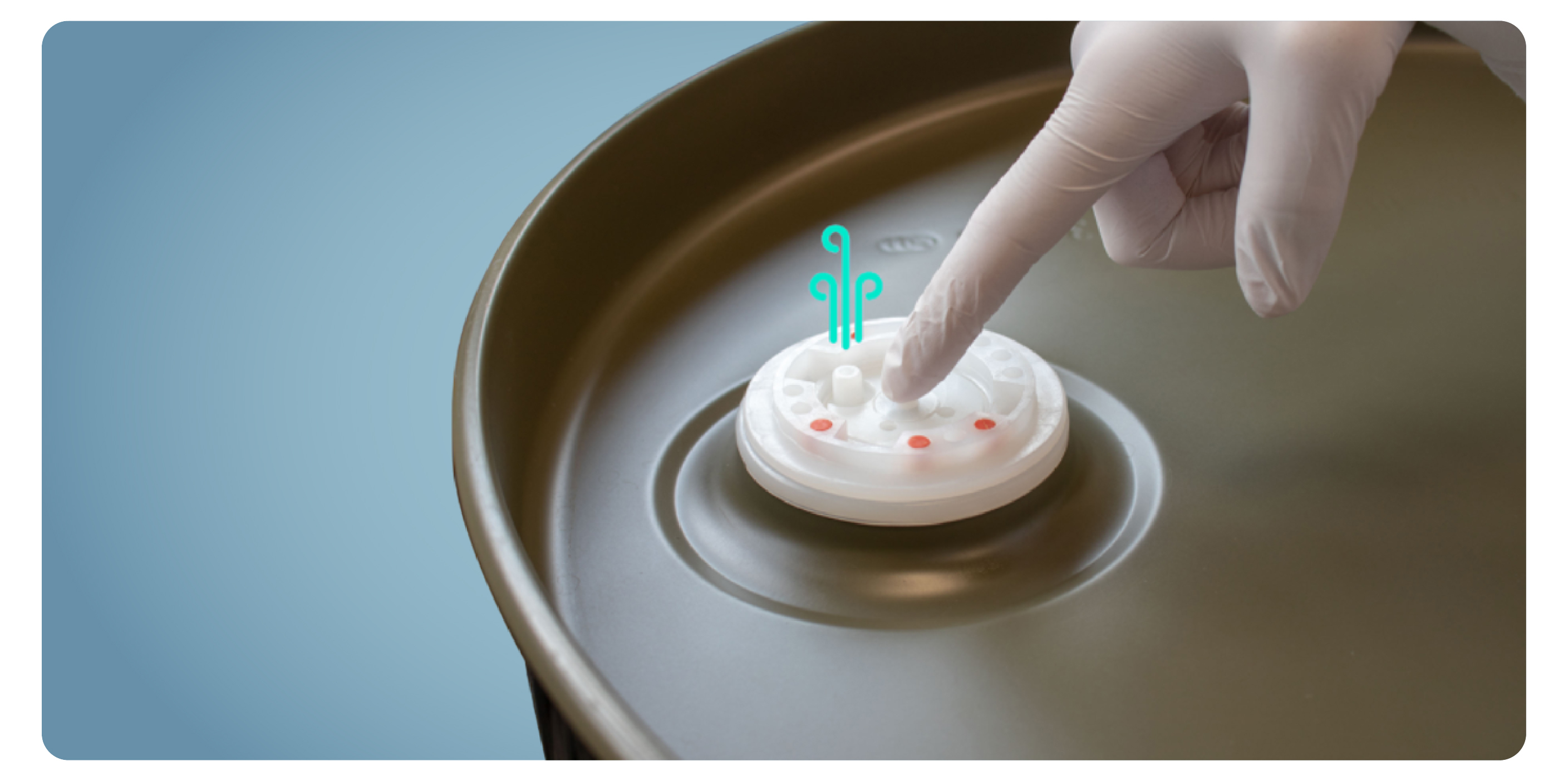

Manual pressure relief valves allow a controlled compensation of the pressure inside the container.

• Opens automatically in the event of negative pressure
• Opens manually in the event of excess pressure

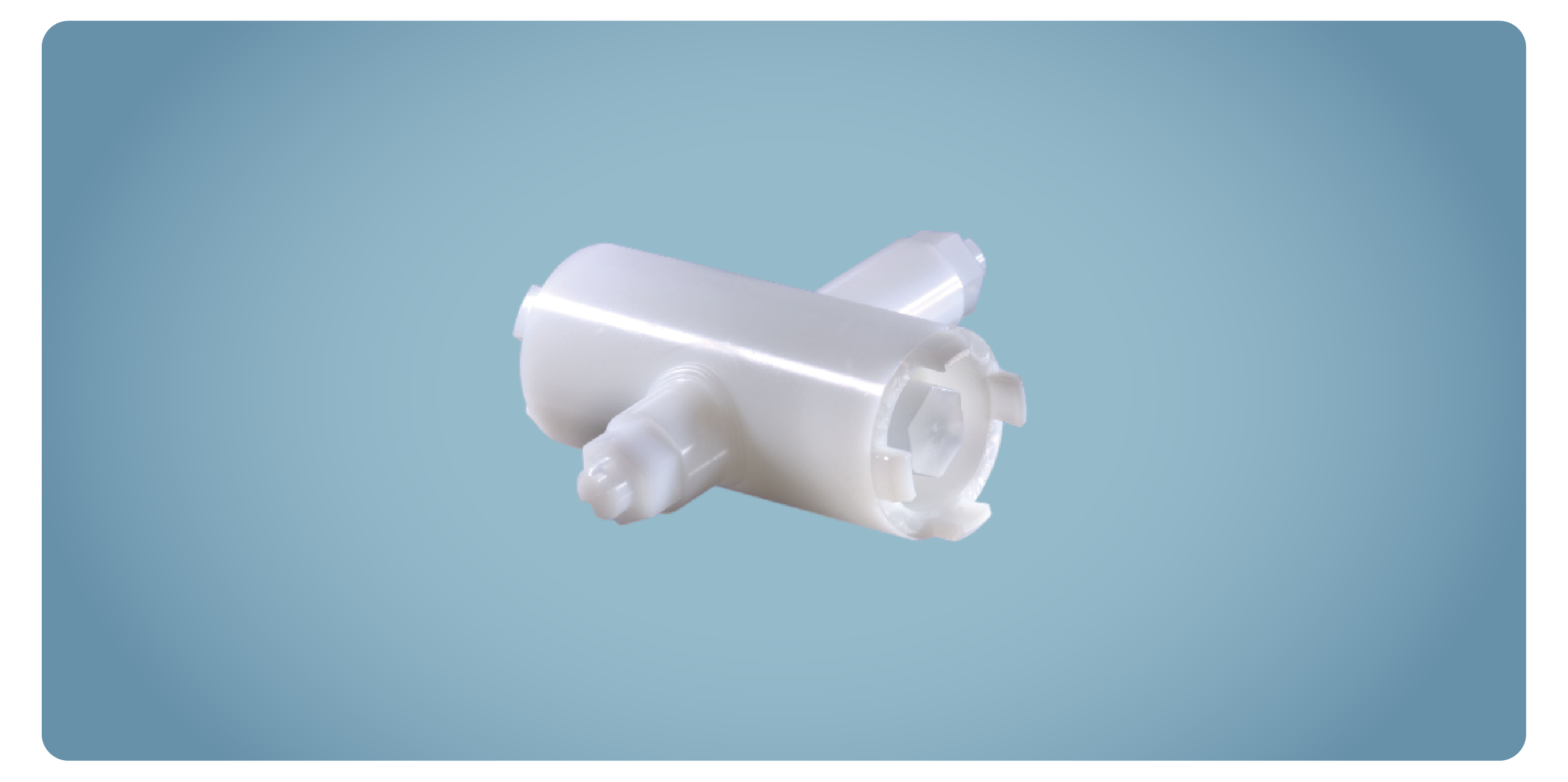

Universal drum wrench for safely opening, closing and fitting dip tubes and screw plugs.

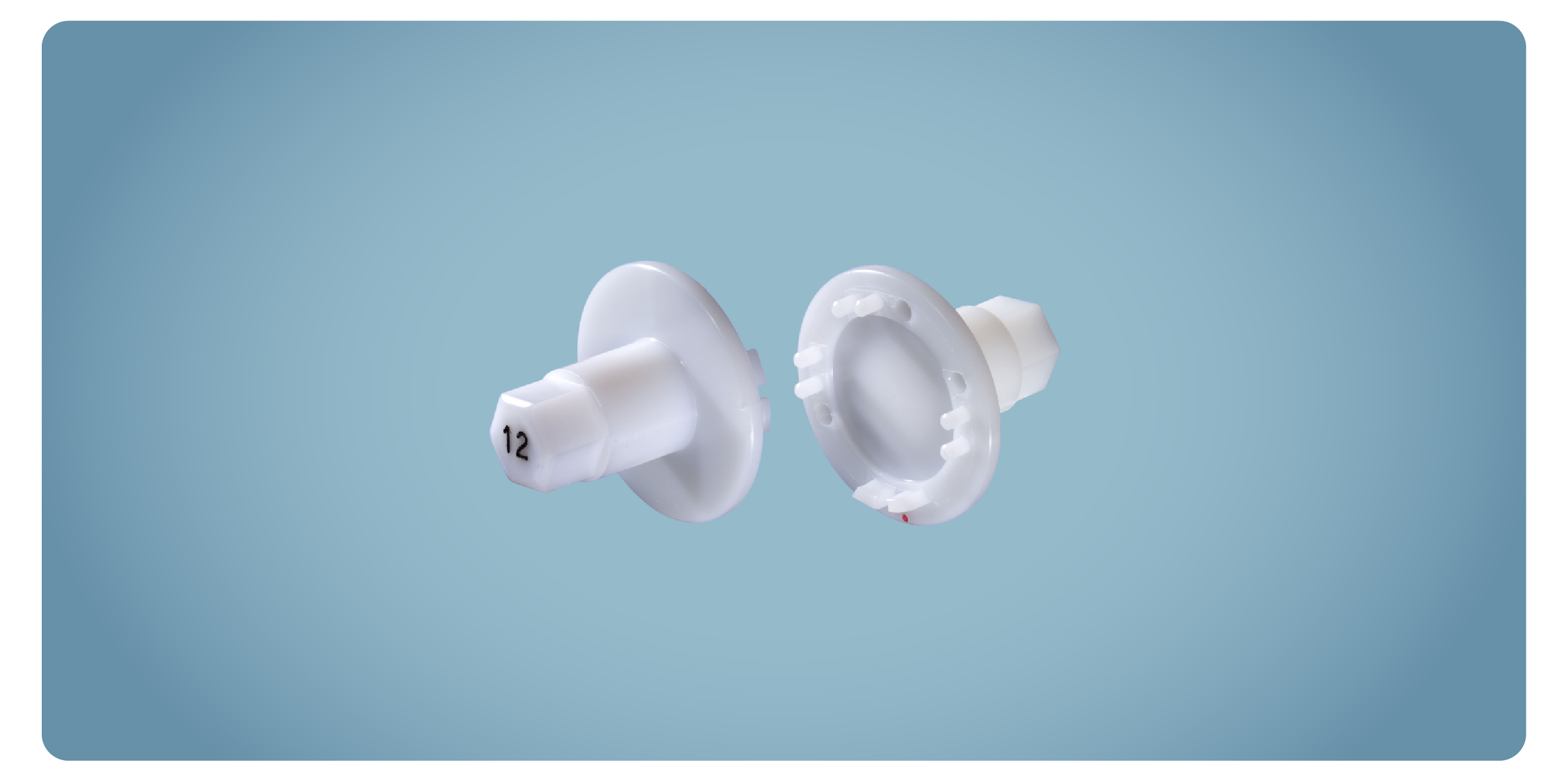

Our QC dip tubes can also be purchased uncoded and easily be coded to the appropriate chemical as needed.
That reduces warehousing and improves flexibility. The use of key-code checkers helps in this respect and enables error-free operations.

In case the dip tube has to be changed on site, the docking station for dip tubes provides a convenient storage option.
