Product lines Dispense and Fill Heads

M-Series

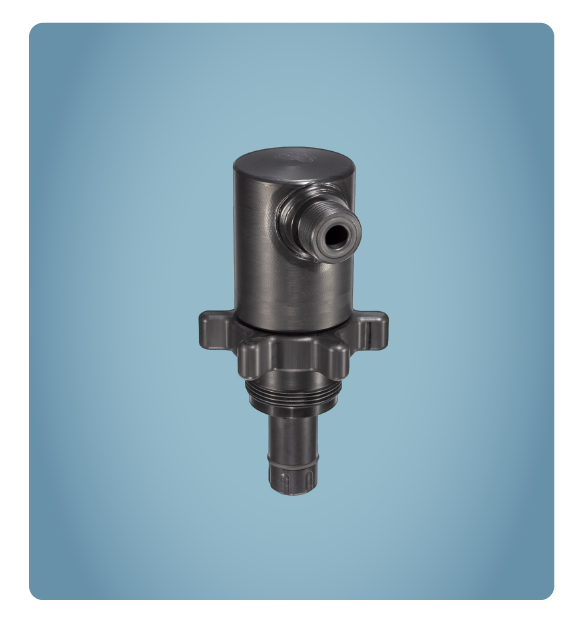

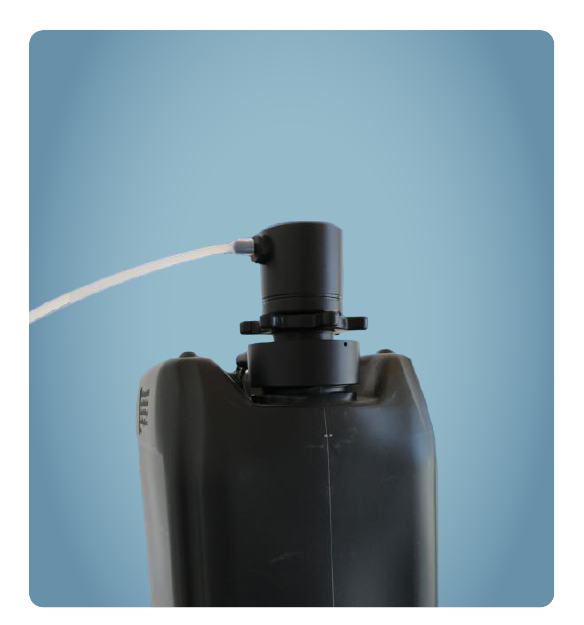

The compact Dispense Heads of the M-Series are designed for low flow rates of less than 2 l/min and thus ideally suitable for dosing applications.

Configure it now!

  • Safe and clean handling of liquids thanks to closed-loop.
  • Leak-free dispensing and filling; spill-free thanks to integrated check valve.
  • Integrated ventilation system.
  • Easy connection and disconnection.
  • Compatible with nearly all packaging materials.
  • Qualified for high-purity chemicals.
  • MT2 dip tubes specific to system. Also compatible with QC2 dip tubes.

Flow rate (max)

2 l/min
with check valve

Valves

Check valve
self-closing made from
stainless steel or fluoropolymer

Available Materials

High purity
HDPE
PVDF

Elec. conductive

PP

Seals

Standard
FFKM (Kalrez®)

Alternative

FKM (Viton®)
EPDM

Liquid-Connection

Vertical or horizontal
Flare 1/4", 3/8“
Hose Connector
Thread

Vent-Connection

Integrated ball valve
Hose connection not possible

Corresponding dip tubes

"MT2-"
also compatible with QC2 dip tubes

Chemical Key-Code

Optional

Please visit our download center for further downloads and other languages. Resources > Downloads.

check resistance
